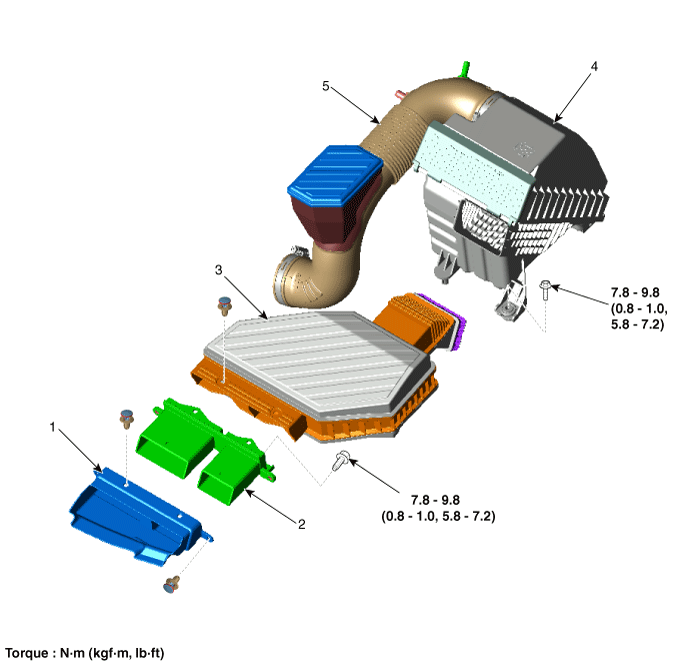

Components

1. Air intake shield
2. Duct extension
3. Air duct

4. Air cleaner assembly
5. Air intake hose

Air Cleaner Repair procedures

Removal and Installation 1. Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover") 2. ...
