Components

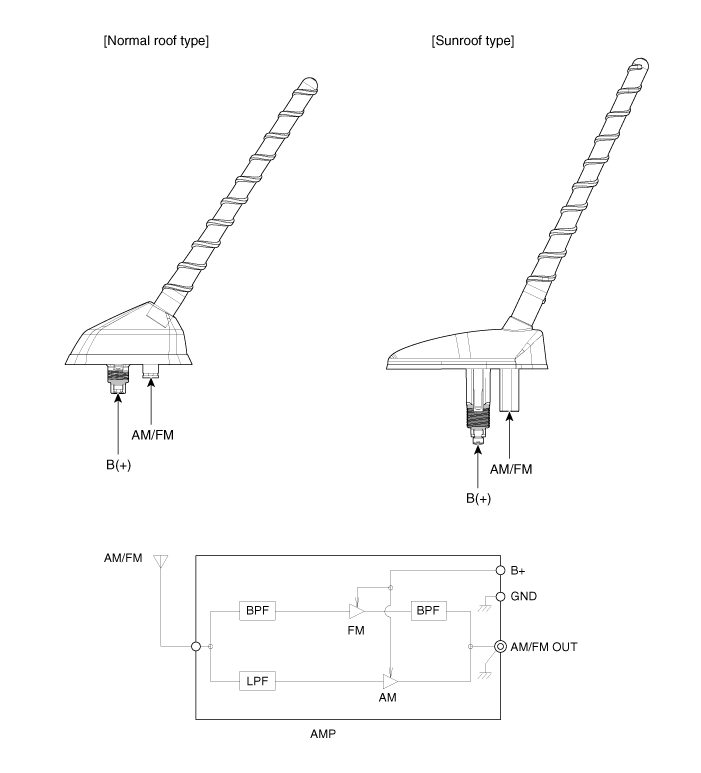

[AM/FM Antenna]

External Amp Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the right luggage side trim. (Refer to Body - "Luggage ...

Antenna Repair procedures
Removal Roof antenna 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly. (Refer to Body - &q ...
