Kia Sportage: Automatic climate control system / Automatic heating and air conditioning
.png)

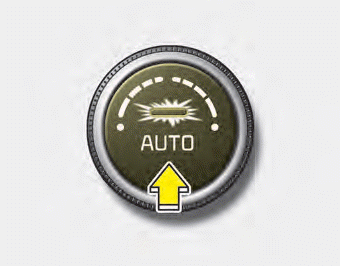

1. Press the AUTO button. The modes, fan speeds, air intake and air-conditioning
will be controlled automatically by setting the temperature.
.png)

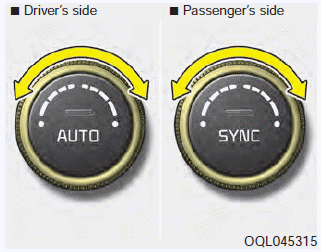

2. Turn the temperature control knob to the desired temperature.
✽ NOTICE
- To turn the automatic operation off, select any button or switch of
the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button (Press the button one more time to deselect
the front windshield defroster function. The ‘AUTO’ sign will illuminate on
the information display once again.)
- Air intake control button
- Fan speed control switch
The selected function will be controlled manually while other functions operate
automatically.
- For your convenience and to improve the effectiveness of the climate
control, use the AUTO button and set the temperature to 73°F (23°C).
.png)
✽ NOTICE
Never place anything over the sensor located on the instrument panel to ensure
better control of the heating and cooling system.
