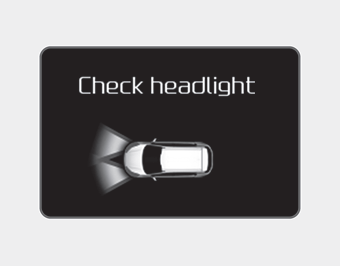

Kia Sportage: Warning Messages / Check headlight
This warning message illuminates if there is a malfunction (burned-out bulb except
LED lamp or circuit malfunction) with the headlamp. In this case, have your vehicle
inspected by an authorized Kia dealer.
✽ NOTICE
- When replacing the bulb, use the same wattage bulb. For more information,
refer to “BULB WATTAGE” in chapter 9.
- If different wattage bulb is equipped with the vehicle, this warning
message is not displayed.
