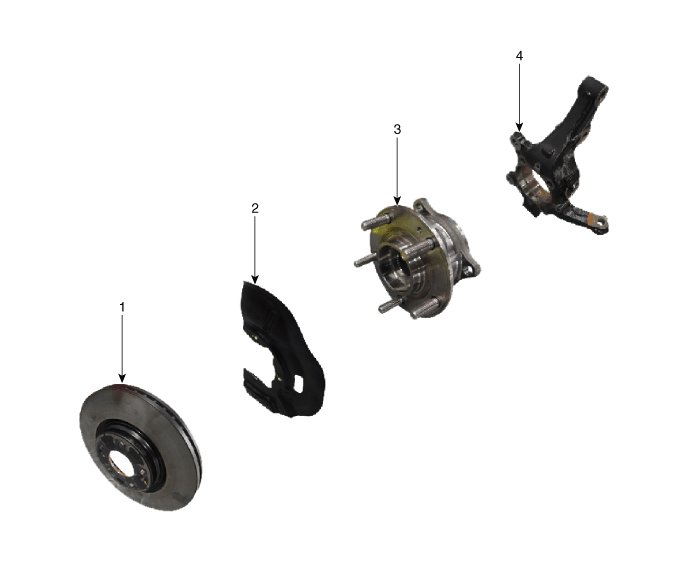

Components

1. Brake disc
2. Dust cover
3. Hub bearing
4. Knuckle

Front Axle Assembly / Front Hub / Knuckle / Tone Wheel
...

Repair procedures
Removal 1. Remove wheel nuts, wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 9 ...
