Kia Sportage: Propeller Shaft Assembly / Propeller Shaft / Components and components location

Kia Sportage QL (2015-2026) Service Manual / Driveshaft and axle / Propeller Shaft Assembly / Propeller Shaft / Components and components location

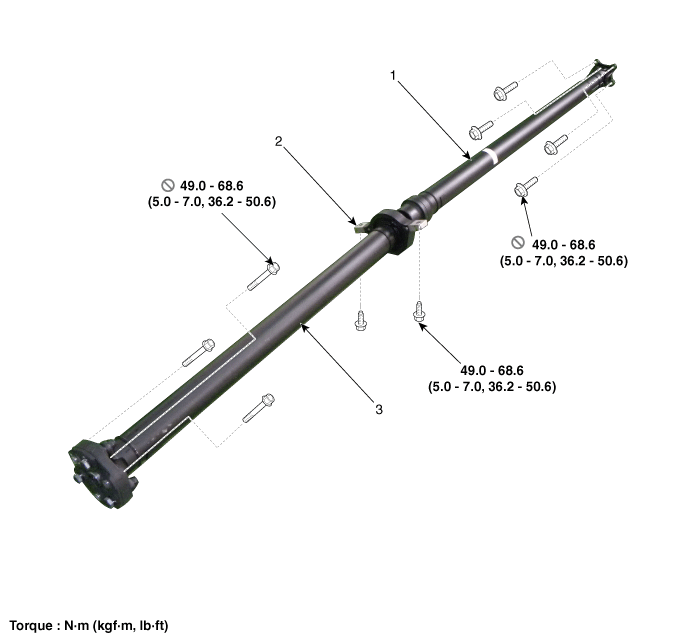

Components Location

1. Front propeller shaft
2. Center bearing bracket

3. Rear propeller shaft

Propeller Shaft Assembly / Propeller Shaft

...

Repair procedures

Removal 1. After making a match mark on the flange yoke and transaxle companion, remove the propeller shaft mounting bolts (A). Tighte ...
