Components

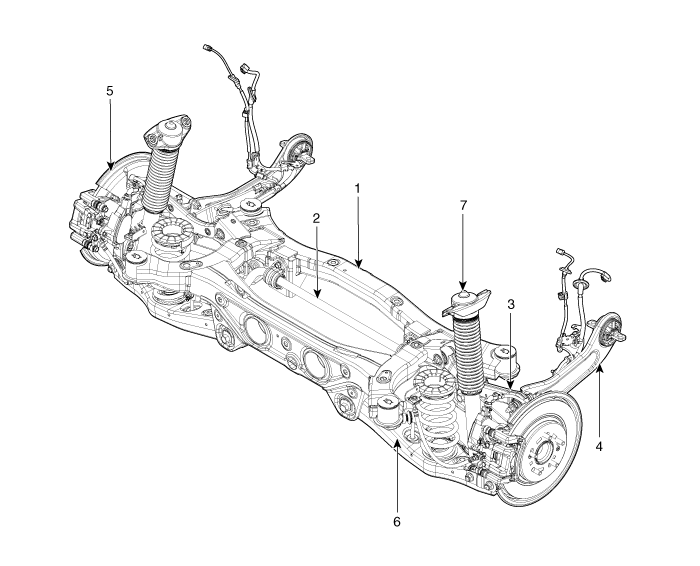

[2WD]

1. Rear sub frame
2. Rear stabilizer bar
3. Rear upper arm
4. Trailing arm

5. Rear axle
6. Rear lower arm
7. Rear shock absorber

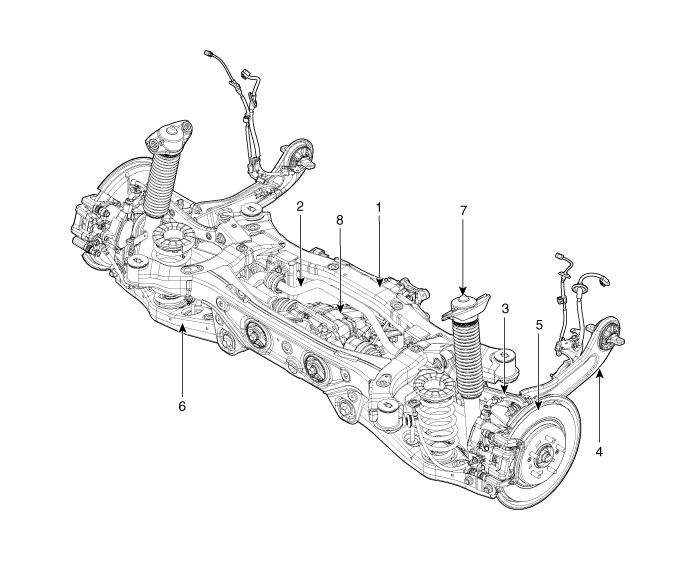

[4WD]

1. Rear sub frame
2. Rear stabilizer bar
3. Rear upper arm
4. Trailing arm

5. Rear axle
6. Rear lower arm
7. Rear shock absorber
8. Rear differential carrier
