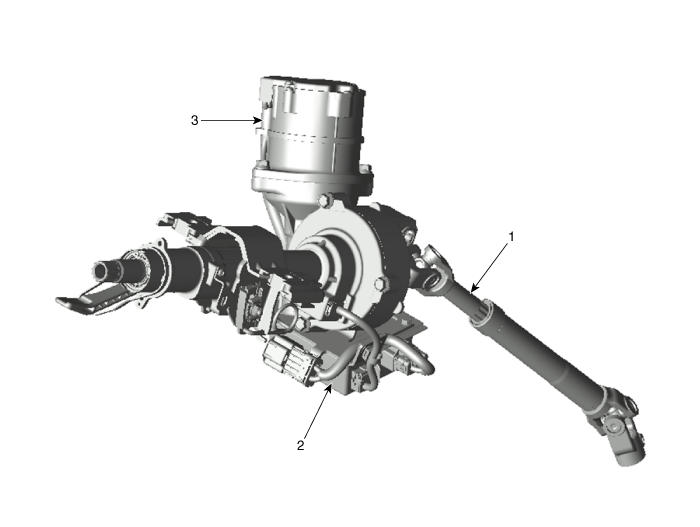

Components

1. Steering column
2. ECU

3. Motor

Description and operation

Description EPS (Electric power steering, Column assist type) system is an engine operation independent steering system that uses an electric motor to assist the steering force. ...

Schematic diagrams

Schematic Diagrams Harness Connector Item Pin Pin name MDPS Power 1 Battery + ...
