Kia Sportage: Front Door / Components and components location

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

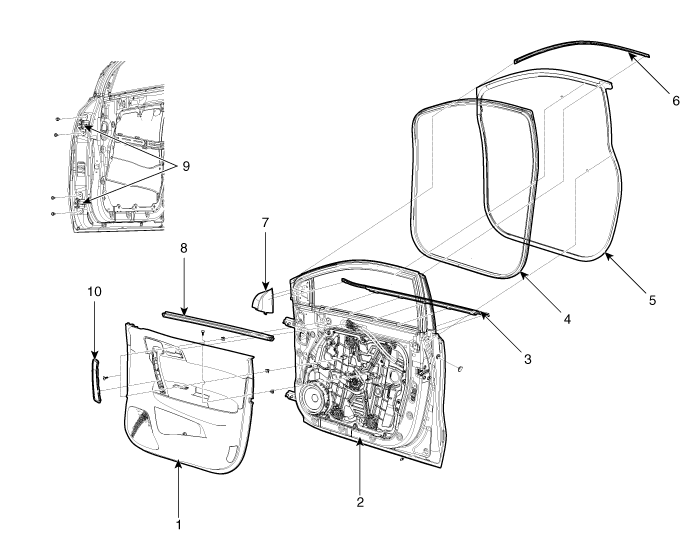

Components

1. Front door trim
2. Front door module & panel
3. Front door belt outside weatherstrip
4. Front door body side weatherstrip
5. Front door side weatherstrip

6. Front door frame molding
7. Front door quadrant inner cover
8. Front door belt inside weatherstrip
9. Front door hinge
10. Front door grip handle inner cover

Repair procedures

Adjustment Glass Adjustment Check the glass run channel for damage or deterioration, and replace them i ...
