Kia Sportage QL (2015-2024) Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location

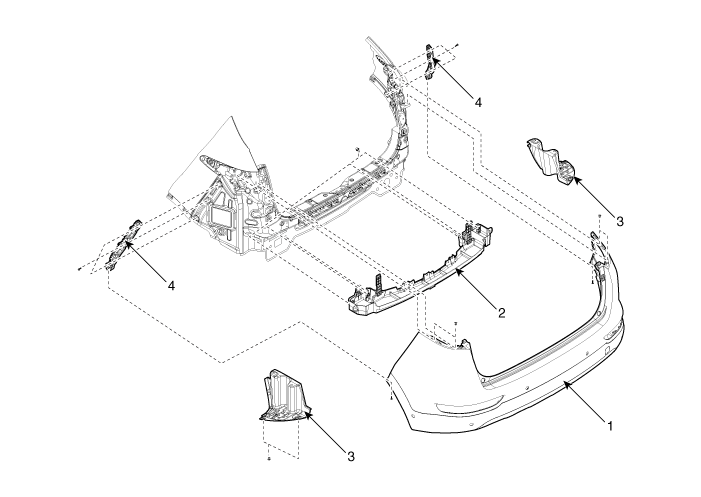

Components

1. Rear bumper cover
2. Rear bumper beam

3. Rear bumper side under cover
4. Rear bumper side bracket

Rear Bumper

...

Rear Bumper Cover Components and components location

Component Location 1. Rear bumper cover ...
