Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Audio / Components and components location

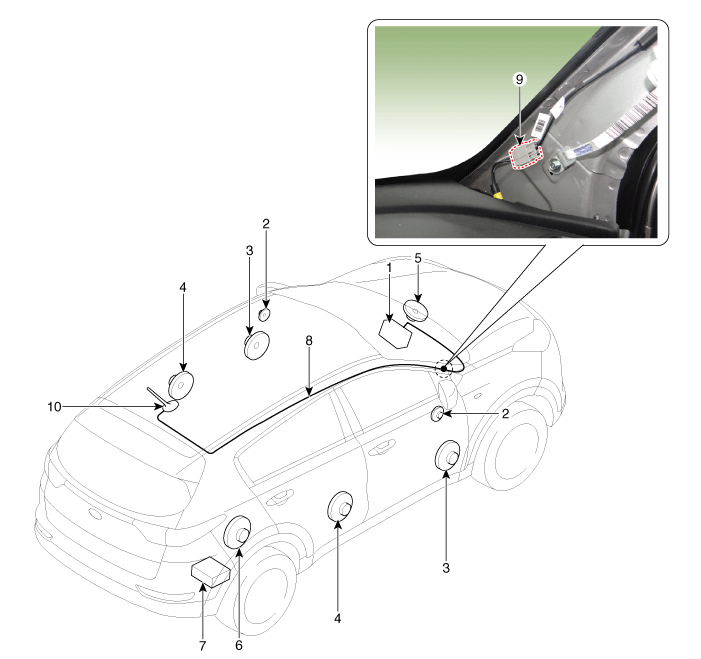

Component Location

1. Audio unit
2. Tweeter speaker
3. Front door speaker
4. Rear door speaker
5. Center speaker
6. Sub woofer speaker
7. External amplifier
8. Antenna feeder cable
9. Antenna cable connector
10. Roof antenna (AM/FM)

Specifications
Specifications Item Specification Model AUDIO/CD/BLUETOOTH (A Type) AUDIO/CD/BLUETOOTH (B Type) Int ...

Audio Unit Components and components location
Components [AUDIO/CD/BLUETOOTH] (A Type) Connector Pin Information No. Connector A Connector B 1 Rear doo ...
