Kia Sportage: BCM (Body Control Module) / Components and components location
Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / BCM (Body Control Module) / Components and components location

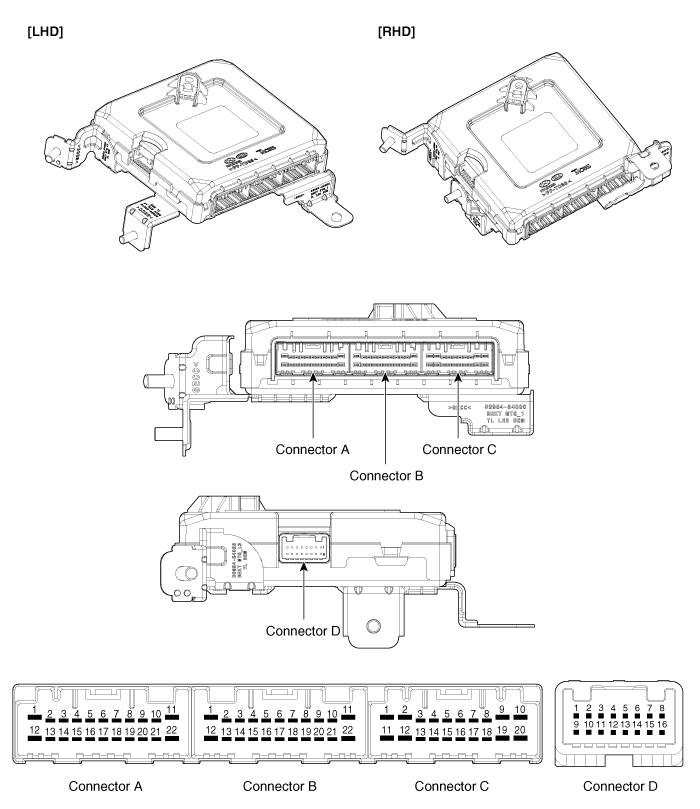

| Components |
Connector Pin Information
|
No. |
Connector A |
Connector B |
Connector C |
Connector D |
|
1 |
Batt (+) |
IGN |
- |
Power tailgate (option) |
|
2 |
IGN 2 |
PAS sensor |
Rear right seat belt indicator |
Heated steering wheel switch |
|
3 |
Auto light power |
AIR BAG signal |
Rear left seat belt indicator |
- |
|
4 |
Fog lamp switch |
RPAS OFF switch |
Mirror folding relay |
- |
|
5 |
Light switch |
PAS/RPAS LIN |
- |
- |
|
6 |
Rear wiper switch |
Chassis CAN (Low) |
Safety power window Enable |
- |
|
7 |
Rear washer switch |
Chassis CAN (High) |
Wiper ON relay |
- |
|
8 |
Front washer switch |
- |
Wiper high & low relay |
Heated steering wheel indicator |
|
9 |
Wiper motor position |
Body CAN (High) |
Heated steering wheel output |
Sunroof open switch |
|
10 |
ATM solenoid |
Body CAN (Low) |
IGN2 (Heated steering wheel power) |
PAS (option) |
|
11 |
RPAS sensor |
- |
Ground (Power) |
Diagnosis |
|
12 |
IGN1 |
Heated steering NTC sensor |
Assist seat belt indicator |
Ground |
|
13 |
ACC |
Key IN switch |
Rear center seat belt indicator |
- |
|
14 |
Auto light sensor_signal |
Ket inter lock switch |
Key hole illumination |
- |
|
15 |
Auto light sensor_GND |
Rear defogger switch |
Mirror unfolding relay |
- |
|
16 |
Head lamp switch (High) |
LIN_Intrusion protection system |
Start relay |
Door lock indicator (QLe only) |
|
17 |
Front wiper switch |
LIN_Rain sensor |
Rear wiper relay |
|
|
18 |
Wiper speed |
RPAS OFF Switch indicator |
Head lamp washer relay |
|
|
19 |
Front wiper switch (Low) |
Ground |
Pocket lamp |
|
|
20 |
Brake switch |
- |
Room lamp |
|
|
21 |
KEY solenoid |
- |
|
|
|
22 |
Ground |
- |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12 V
Operating voltage
DC 9 - 16 V
...
Schematic diagrams
Circuit Diagram
...
