Kia Sportage: Blind Spot Detection system / Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Blind Spot Detection system / Components and components location

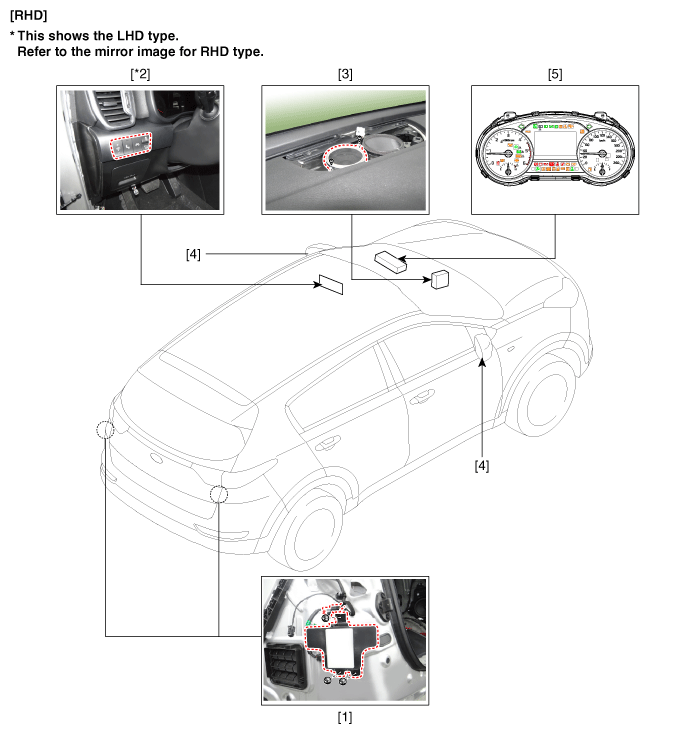

Components

1. Blind Spot Detection (BSD) Unit
2. BSD switch
3. Speaker
4. BSD warning lamp
5. Cluster

Specifications
Specifications Items Specification Rated voltage DC 12 V Operating voltage 9 - 16 V ...

Description and operation
Description BSD is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the vehicle in the back and senses and sets off ...
