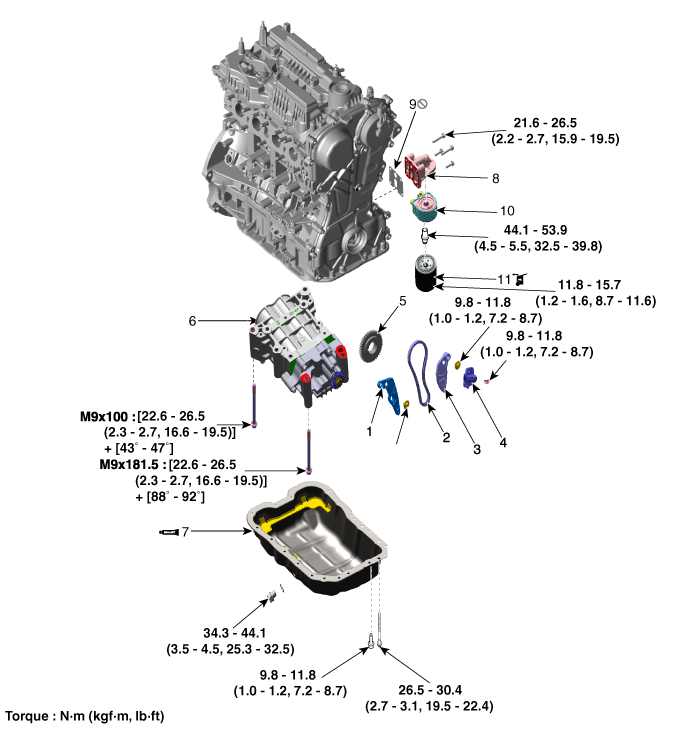

Components

1. Balance shaft chain guide
2. Balance shaft chain
3. Balance shaft chain tensioner arm
4. Balance shaft chain tensioner
5. Balance shaft chain sprocket
6. Balance shaft module (BSM)



7. Oil pan
8. Oil filter bracket
9. Oil filter bracket gasket
10. Oil cooler
11. Oil filter


Lubrication System
...

Engine Oil Flow diagram
Flow Diagram ...
