Inspection
1.
Check the signal waveform of the CMPS and CKPS using the KDS/GDS.
Specification: Refer to “Wave Form”
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Remove the air cleaner.
(Refer to Engine Mechanical System - "Air Cleaner")
3.
Remove the battery.
(Refer to Engine Electrical System - "Battery")
4.

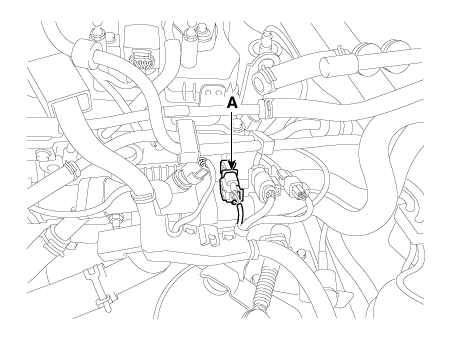

Disconnect the crankshaft position sensor connector (A).

5.
Lift the vehicle.
6.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
7.

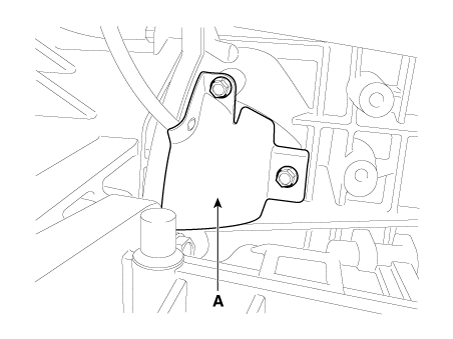

Remove the protector (A) after loosening the mounting bolts.
Crankshaft position sensor protector mounting bolt (M6):
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

8.

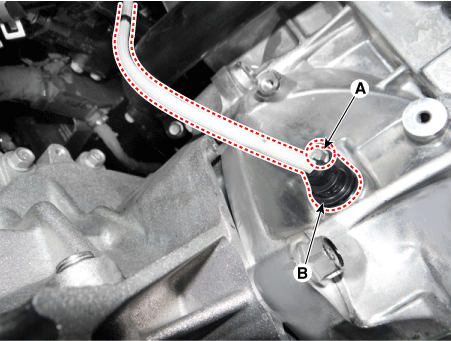

Remove the crankshaft position sensor (A) after loosening the mounting bolt,
Crankshaft position sensor mounting bolt:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Apply the engine oil to the O-ring.
Insert the sensor in the installation hole and be careful not to damage.
1.
Install in the reverse order of removal.
