Kia Sportage: Crash Pad / Crash Pad Garnish [RH] Components and components location

Kia Sportage QL (2015-2024) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Garnish [RH] Components and components location

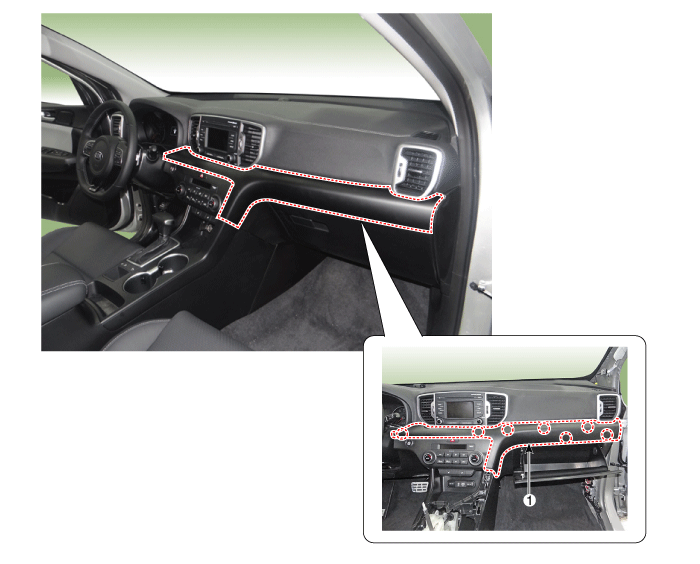

Component Location

1. Crash Pad Garnish assembly [RH]
