Description

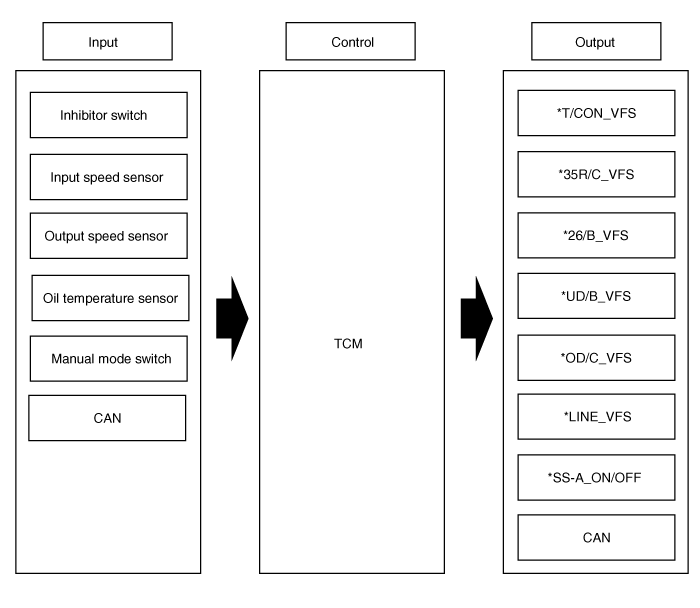

Automatic transaxle control system relies on various measurements to determine the current control status and determine the necessary compensation values. These values are used to control the actuators and achieve the desired control output.
Operation

*T/CON_VFS : Torque converter control solenoid valve
*35R/C_VFS : 35R clutch control solenoid valve
*26/B_VFS : 26 Brake control solenoid valve
*UD/B_VFS : Underdrive brake control solenoid valve
*OD/C_VFS : Overdrive clutch control solenoid valve
*LINE_VFS : Line pressure control solenoid valve
*SS-A_ON/OFF : Shift control solenoid valve-A
Automatic Transaxle Control System
...

Repair procedures
Adjustment TCM adaptive values learning • TCM adaptive values learning : When shift shock occurs or parts related with the transaxle are replaced, TCM lea ...
