Kia Sportage: Driveshaft Assembly / Dynamic Damper Repair procedures
Kia Sportage QL (2015-2024) Service Manual / Driveshaft and axle / Driveshaft Assembly / Dynamic Damper Repair procedures
| Replacement |
| 1. |
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
|
| 2. |
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - “TJ joint”)
|
| 3. |

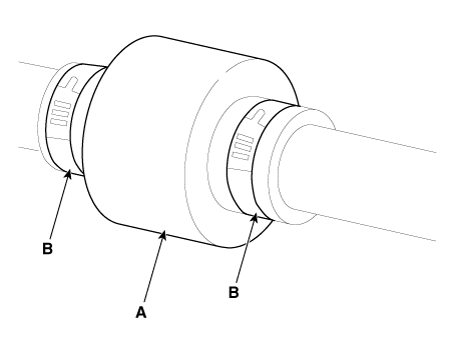

Remove the remove the both side of band (B) of the dynamic damper (A).
|
| 4. |

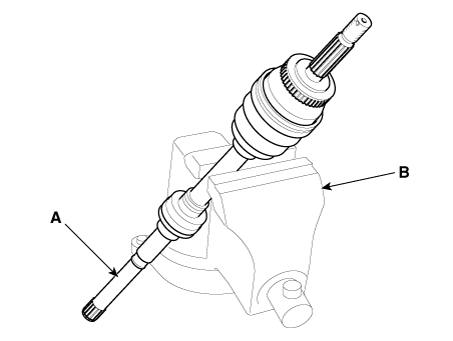

Fix the driveshaft (A) with a vice (B) as illustrated.
|
| 5. |
Apply soap powder on the shaft to prevent being damaged between the
shaft spline and the dynamic damper when the dynamic damper is removed.
|
| 6. |

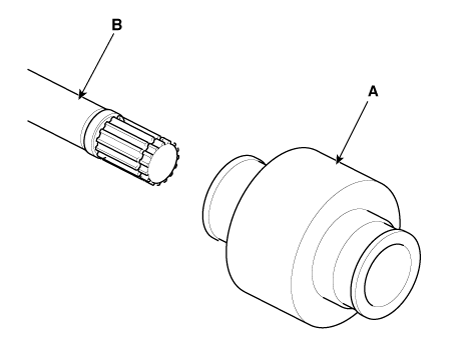

Seperate the dynamic damper (A) from the shaft (B) carefully.
|
| Installation |
| 1. |
Apply soap powder on the shaft to prevent being damaged between the
shaft spline and the dynamic damper.
|
| 2. |
Install the dynamic damper.
|
| 3. |

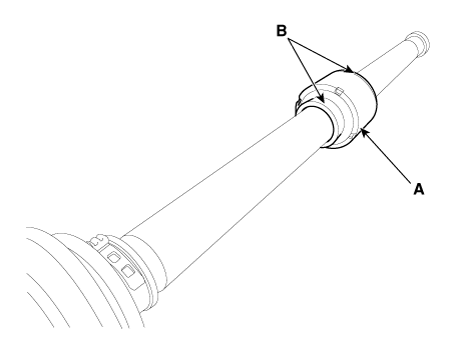

Install the dynamic damper band (A).
|
| 4. |
Using the SST(09495-3K000), secure the TJ boot bands (B).
|
| 5. |
Install the TJ joint assembly.
(Refer to Driveshaft Assembly - “TJ Joint”)
|
| 6. |
Install the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
|
| 7. |
Check the front alignment.
(Refer to Suspension System - "Front Alignment")
|
