Kia Sportage: Engine Control System / E-CVVT motor Troubleshooting

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / E-CVVT motor Troubleshooting

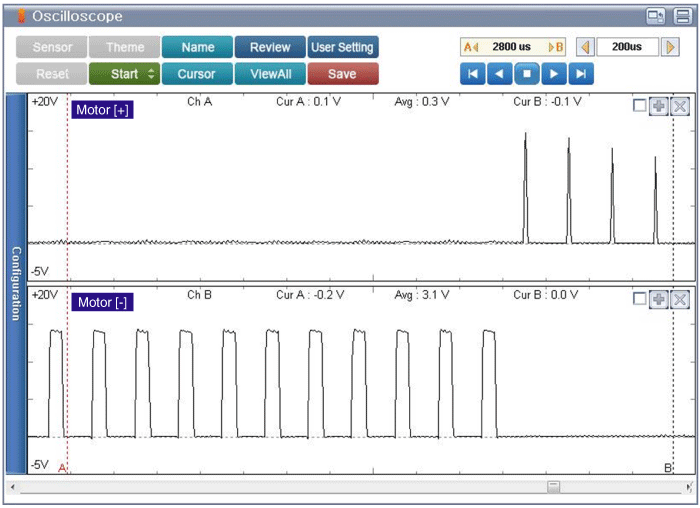

Signal Waveform

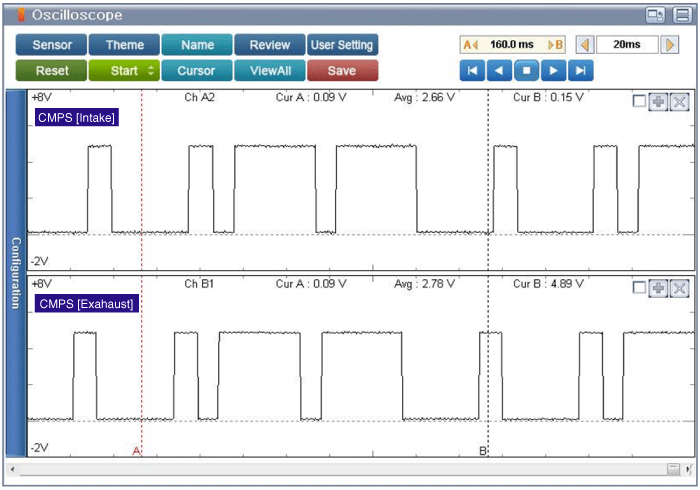

•	There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.

E-CVVT motor Repair procedures

Removal 1. Remove the electric E-CVVT. (Refer to engine machine system - "CVVT assembly") Installation 1. ...

Fuel Pressure Control Valve (FPCV) Specifications

Specification Item Specification Coil Resistance (Ω) About 0.5 [20°C(68°F) ...
