Kia Sportage: Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

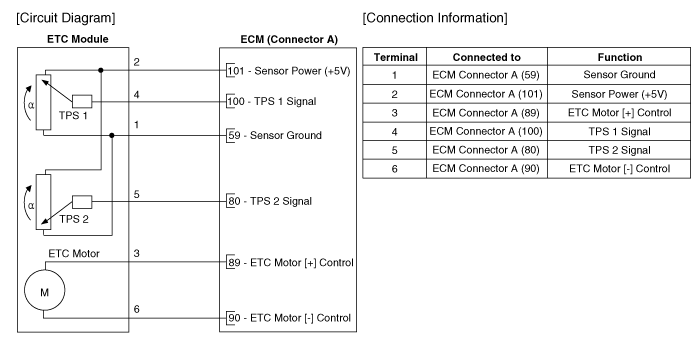

Circuit Diagram

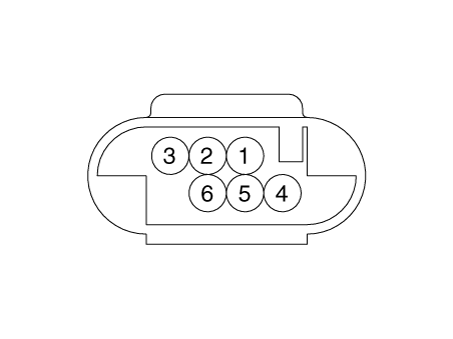

Harness Connector

ETC (Electronic Throttle Control) System Description and operation
Description The Electronic Throttle Control (ETC) System consists of a throttle body with an integrated control motor and throttle position sensor (TPS). Instead of the tradition ...

ETC (Electronic Throttle Control) System Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the KDS/GDS on the Data Link Connector (DLC). 2. Start the engine and measure t ...

Other information:

Kia Sportage QL (2015-2025) Service Manual: Fuel Pressure Control Valve (FPCV) Repair procedures


Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. 3. Measure resistance between the fuel pressure reg ...
