Component Location (1)

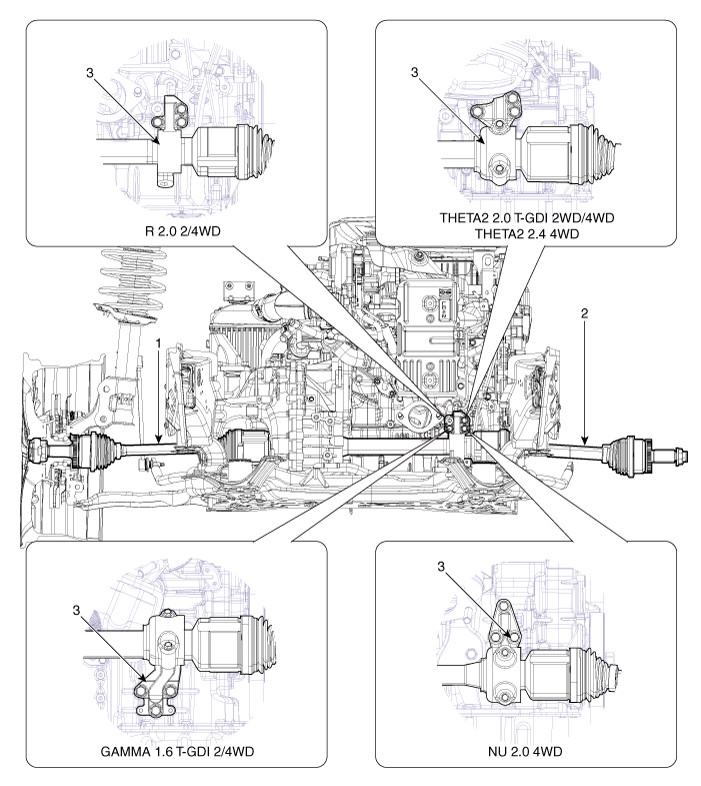

[Equal type]

1. Drive shaft (LH)
2. Drive shaft (RH)
3. Inner shaft bearing bracket

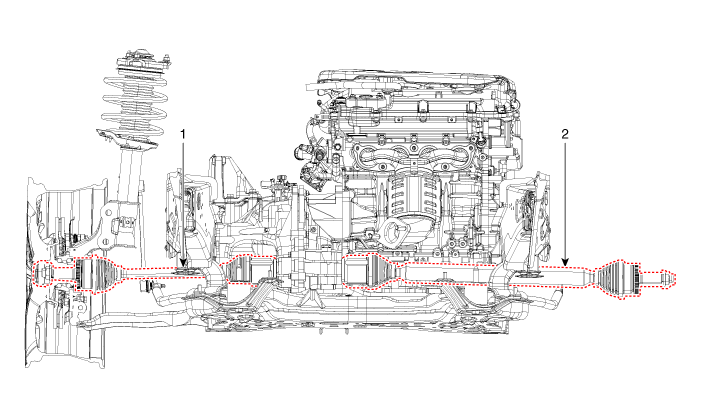

[Unequal type]

1. Drive shaft (LH)
2. Drive shaft (RH)

Component Location (2)

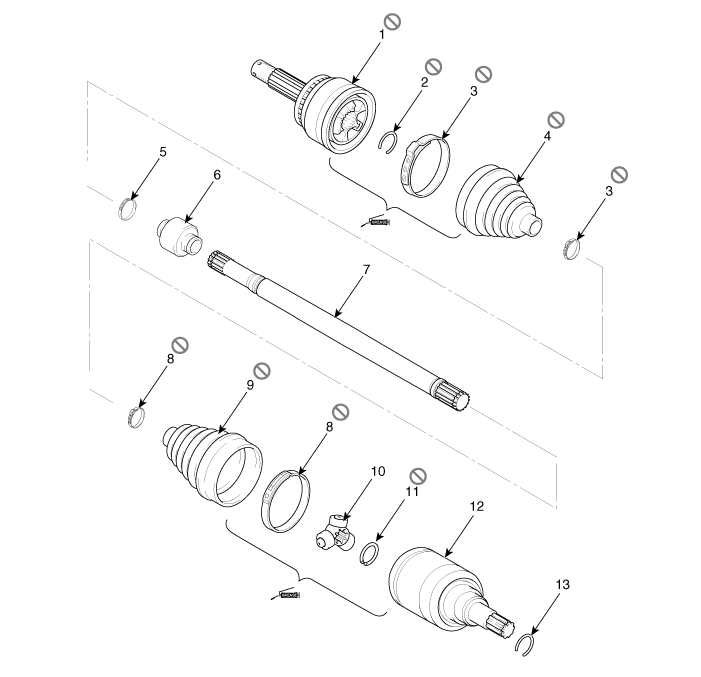

[LH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip

12. TJ housing
13. Circlip

Component Location (3)

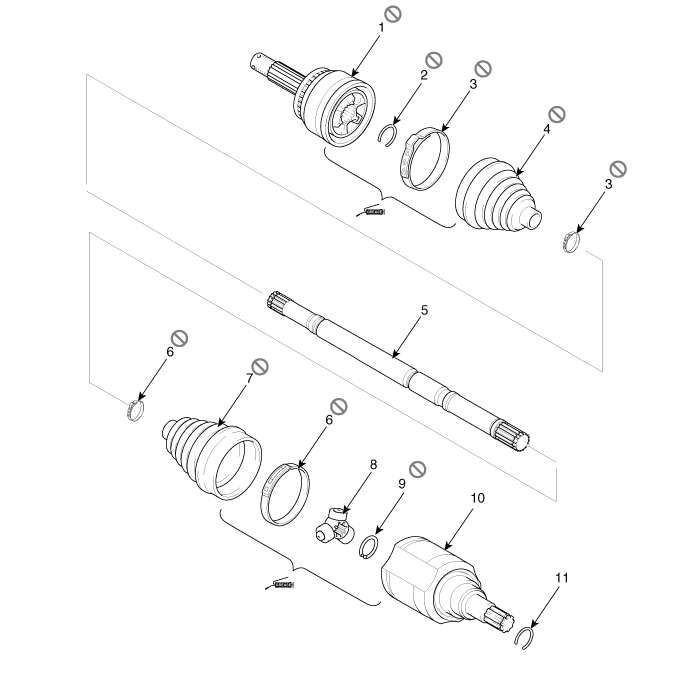

[RH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
9. Snap ring
10. TJ housing
11. Circlip
