Kia Sportage: Wipers and washers / Front windshield washers

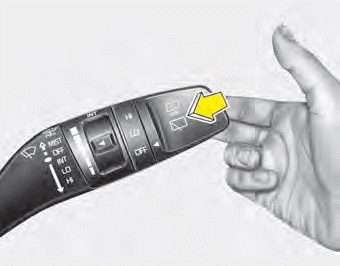

In the OFF position, pull the lever gently toward you to spray washer fluid on
the windshield and to run the wipers 1-3 cycles.
Use this function when the windshield is dirty.
The spray and wiper operation will continue until you release the lever.
If the washer does not work, check the washer fluid level. If the fluid level
is not sufficient, you will need to add appropriate non-abrasive windshield washer
fluid to the washer reservoir.
The reservoir filler neck is located in the front of the engine compartment on
the passenger side.
CAUTION - Washer pump
To prevent possible damage to the washer pump, do not operate the washer when
the fluid reservoir is empty.
WARNING - Obscured visibility
Do not use the washer in freezing temperatures without first warming the windshield
with the defrosters; the washer solution could freeze on the windshield and obscure
your vision.
CAUTION - Wipers & windshields
- To prevent possible damage to the wipers or windshield, do not operate
the wipers when the windshield is dry.
- To prevent damage to the wiper blades, do not use gasoline, kerosene,
paint thinner, or other solvents on or near them.
- To prevent damage to the wiper arms and other components, do not attempt
to move the wipers manually.
