Kia Sportage: Identification Numbers / General information
Kia Sportage QL (2015-2024) Service Manual / General Information / Identification Numbers / General information
| Identification Numbers |
Identification Number Description

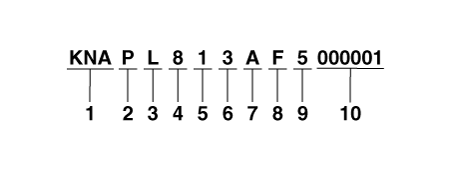

Vehicle Identification Number
| 1. |
World Manufacturer Identifier (WMI)
- KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports
Utility Vehicle)/RV(Recreational Vehicle)
- KNC : Commercial vehicle (Van)
- KND: MPV/SUV/RV (For U.S.A, Canada, Mexico)
- KNH: Van
|
| 2. |
Vehicle line
- P : SPORTAGE
|
| 3. |
Model & Series
- L : Low grade (L)
- M : Middle-Low grade (GL)
- N : Middle grade (GLS, JSL)
- P : Middle-High grade (HGS)
- R : High grade (TOP)
- 6 : Premium GL grade (PGL)
- 7 : Super HGSL grade (SHG)
|
| 4. |
Body/Cabin type, Gross Vehicle Weight Rating
KNA
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KNC (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 2 : Standard Cabin Class-H 4×2
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
KND
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
KNH
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
|
| 5. |
Restraint system, Brake system
KNA, KND
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada
For Mexico
KNC, KNH
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6. |
Engine type
- 3 : Diesel engine 2.0 TCI (R)
- 7 : Flexible Fuel Vehicle (FFV - Ethanol) engine 2.0 MPI (Nu)
- A : Gasoline engine 2.0 MPI (Nu)
- C : Gasoline engine 2.4 GDI (Theta-II)
|
| 7. |
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Reduction Gear
- G : LHD & DCT
- H : LHD & DCT+Transfer
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Reduction Gear
- V : RHD & DCT
- W : RHD & DCT+Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, ×
|
| 8. |
Production year
- F : 2015, G : 2016, H : 2017, J : 2018...
|
| 9. |
Plant of production
- 6 : Sohari (Korea)
- 5 : Hwasung (Korea)
- 7 : Kwangju (Korea)
- T : Seosan (Korea)
|
| 10. |
Vehicle production sequence number
- 000001 ~ 999999
|

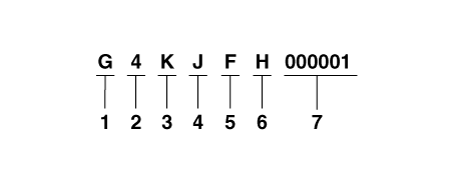

Engine Number
| 1. |
Engine fuel
- G : Gasoline
- D : Diesel
- F : Flexible Fuel Vehicle (FFV - Ethanol)
|
| 2. |
Engine range
- 4 : 4 cycle 4 cylinder
|
| 3. |
Engine development order and capacity
- N : Nu engine (Gasoline / FFV)
- K : Theta engine (Gasoline)
- H : R engine (Diesel)
|
| 4. |
Engine Capacity
- A : 1995cc (R 2.0 engine)
- A : 1999cc (Nu 2.0 engine)
- J : 2359cc (Theta-II 2.4 GDI engine)
|
| 5. |
Production year
- E : 2014, F : 2015, G : 2016, H : 2017...
|
| 6. |
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
|
| 7. |
Engine production sequence number
- 000001 ~ 999999
|
Transaxle Number

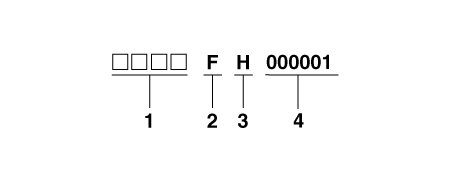

Manual (M6CF4)
| 1. |
Assembly code of plant
|
| 2. |
Model year
- F : 2015, G : 2016, H : 2017, I : 2018...
|
| 3. |
Plant of production
- B : Beijing
- J : Ostrava (Czech)
- H : Hwasung (Korea)
- M : Chennai (India)
- U : Ulsan (Korea)
- W : Wia
|
| 4. |
Transaxle production sequence number
- 000001 - 999999
|

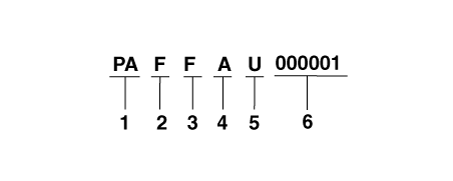

Automatic (A6MF1-1, A6MF1, A6MF2-2, A6LF2)
| 1. |
Model
- BB : A6LF2 2WD
- BD : A6LF2 4WD
- KK : A6MF2-2 2WD
- KM : A6MF2-2 4WD
- PA : A6MF1-1 2WD
- EM : A6MF1 4WD
|
| 2. |
Model year
- F : 2015, G : 2016, H : 2017, I : 2018...
|
| 3. |
Final gear ratio
- F : 3.320
- P : 3.064
- Q : 3.041, 3.612
- R : 3.195
- V : 3.648
|
| 4. |
Detailed classification
- A : Theta 2.4 GDI 2WD/4WD
- D : Theta 2.0 T-GDI 2WD/4WD
- H : R 2.0 4WD
- I : NU 2.0 MPI 2WD
- K : R 2.0 2WD
- R : NU 2.0 MPI 4WD
|
| 5. |
Plant of production
- 2 : Powertech - Pant 2 (Korea)
- 4 : Powertech - Pant 4 (Korea)
- U : Ulsan - Plant 1 (Korea)
- S : Ulsan - Plant 2 (Korea)
- N : Ulsan - Plant 3 (Korea)
- H : Hwasung (Korea)
|
| 6. |
Transaxle production sequence number
- 000001 ~ 999999
|
Paint Code
|
Code |
Color |
|
A3R |
Fiery Red |
|
BU2 |
Mercury Blue |
|
BY2 |
Petina Bronze |
|
E6S |
Mineral Silver |
|
KCS |
Sparkling Silver |
|
SWP |
Snow White Pearl |
|
UD |
Clear White |
|
9P |
Black Cherry |
