Kia Sportage: Headlamp (High/Low beam) bulb replacement / Headlamp bulb
.png)
WARNING - Halogen bulbs
Handle halogen bulbs with care.
- Halogen bulbs contain pressurized gas that will produce flying pieces
of glass if broken.

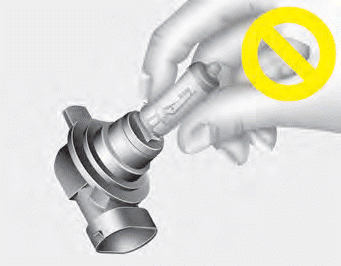

- Always handle them carefully, and avoid scratches and abrasions. If the
bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands.
Residual oil may cause the bulb to overheat and burst when lit. A bulb should
be operated only when installed in a headlamp.
- If a bulb becomes damaged or cracked, replace it immediately and carefully
dispose of it.
- Wear eye protection when changing a bulb. Allow the bulb to cool down
before handling it.
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turni ...
1. Open the hood.
2. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket
counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp
assembl ...
