Inspection
1.
Disconnect the negative (-) battery terminal.
2.

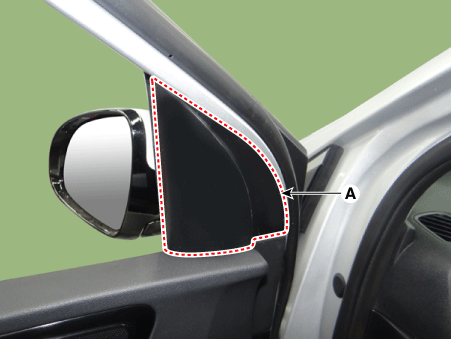

Remove the front door quadrant inner cover (A).

3.

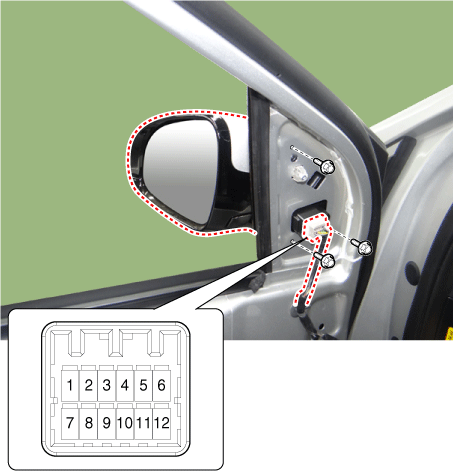

Disconnect the power door mirror connector from the harness.

4.

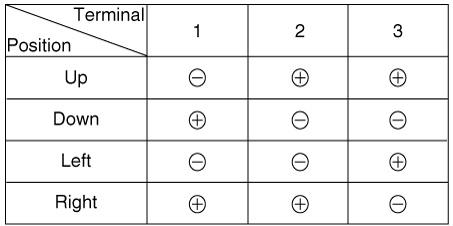

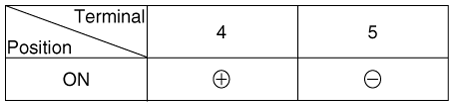

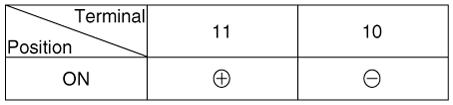

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
[Mirror Control (LH/RT)]

[BSD Indicator]

[Mirror Heater]

[Side Repeater Lamp]

[Mirror Folding Motor]

Power Door Mirror Actuator Components and components location
