Inspection

Power Seat Motor

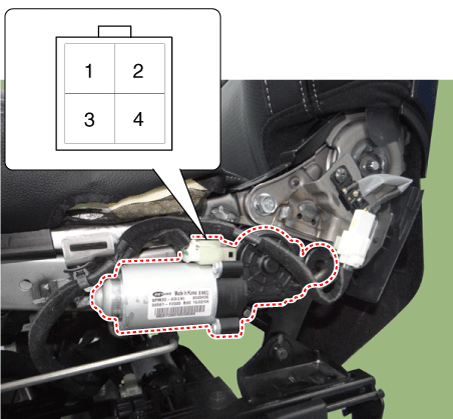

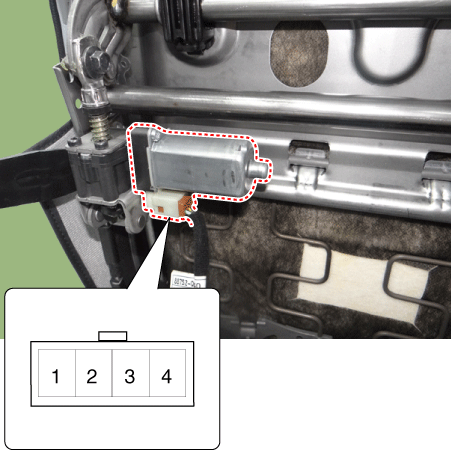

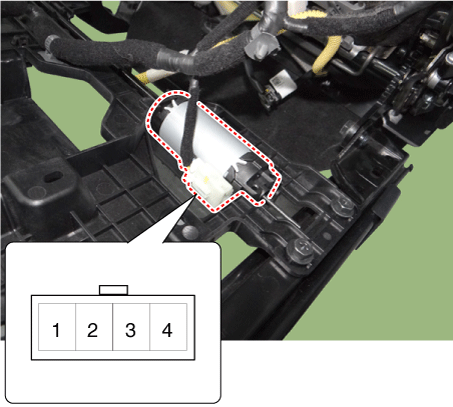

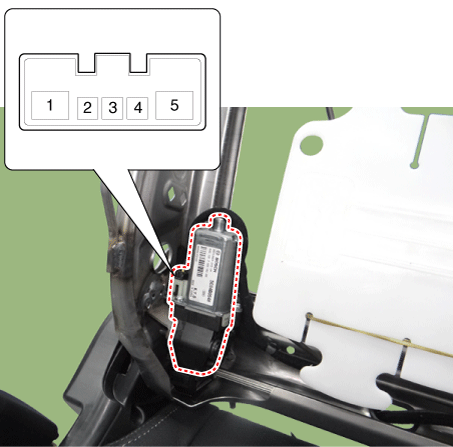

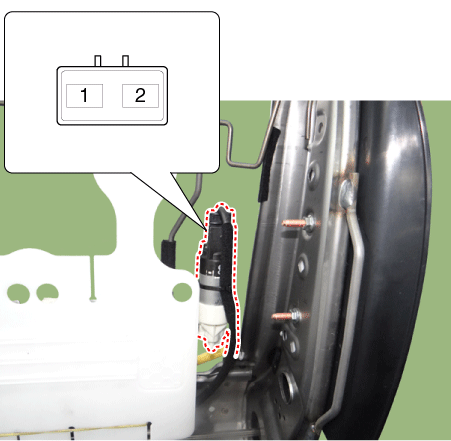

1.	Disconnect the connectors for each motor. [Slide motor] [Rear height motor] [Front height motor] [Reclining motor] [Lumber support motor]

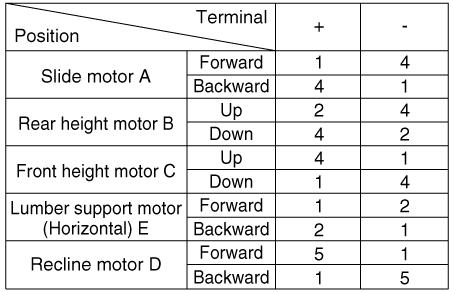

2.	When the battery power is supplied to the motor connector, check the motor for smooth operation.

3.	Reverse the connections and check that the motor turns in reverse.

4.	If the motor runs abnormally, replace it. [Driver / Assist]

Reclining Motor Limit Switch

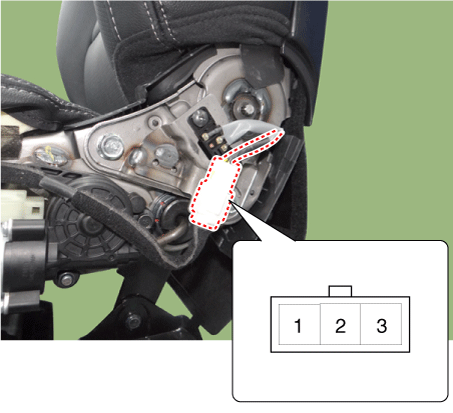

1.	Disconnect the limit switch and operate the limit switch.

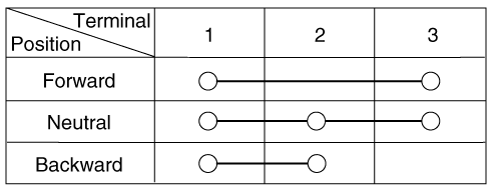

2.	Check for continuity between the terminals.

3.	Make sure that the seat operation is normal in the reverse after the maximum operation.

4.	If there is an abnormality, replace the limit switch.

Remove

Front Seat

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat assembly. (Refer to Body - "Front Seat Assembly")

Power Seat Motor Description and operation

Description Power seat motor is driven by a motor in the following. 1. Slide motor 2. Front tilt motor 3. ...

Power Seat Control Switch Schematic diagrams

Circuit Diagram [Driver power seat switch] [Assist power seat switch] ...
