Kia Sportage: Power Windows / Power Window Motor Components and components location

Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Power Windows / Power Window Motor Components and components location

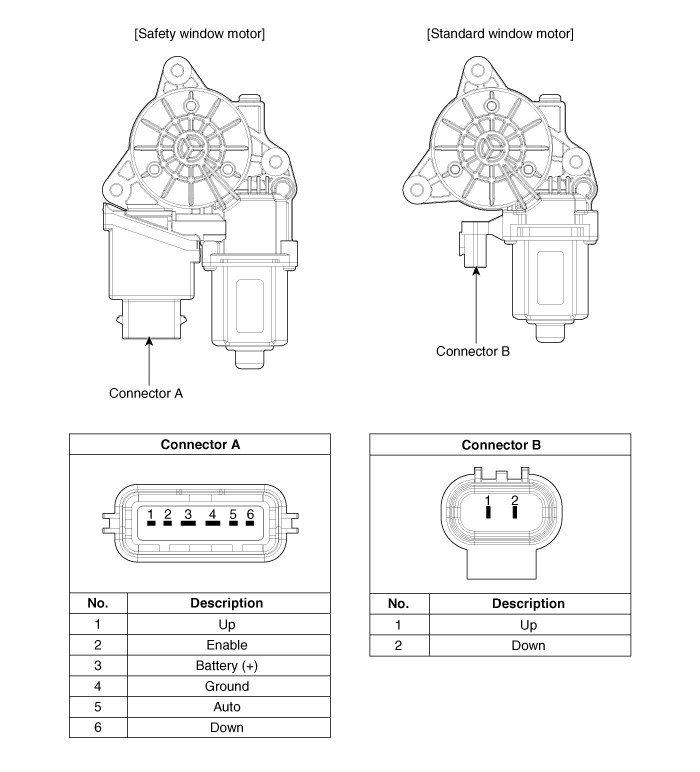

Components

Description and operation
Safety Function of Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition ...

Power Window Motor Schematic diagrams
Circuit Diagram ...
