Kia Sportage: Fuel Filler Door / Repair procedures

Replacement

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

1.	Remove the fuel filler door release actuator. (Refer to Body Electrical System - "Fuel Filler Door Release Actuator")

2.	Open the fuel filler door and then filler door cap.

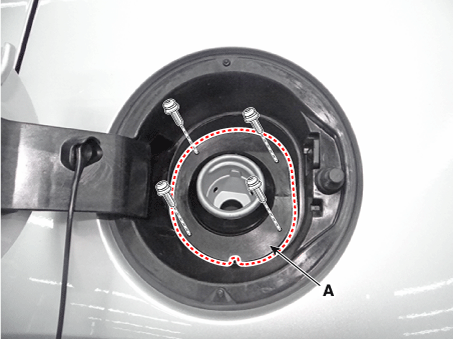

3.	Remove the fuel filler door packing (A) after loosening the mounting screws.

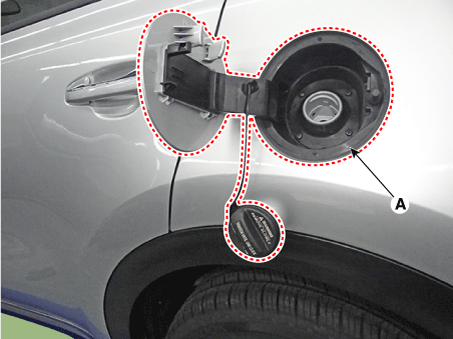

4.	Remove the fuel filler door housing (A).

Install in the reverse order of removal.

•	Make sure the fuel filler door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
