Kia Sportage: ESP(Electronic Stability Program) System / Schematic diagrams
Kia Sportage QL (2015-2024) Service Manual / Brake System / ESP(Electronic Stability Program) System / Schematic diagrams
| Schematic diagram |

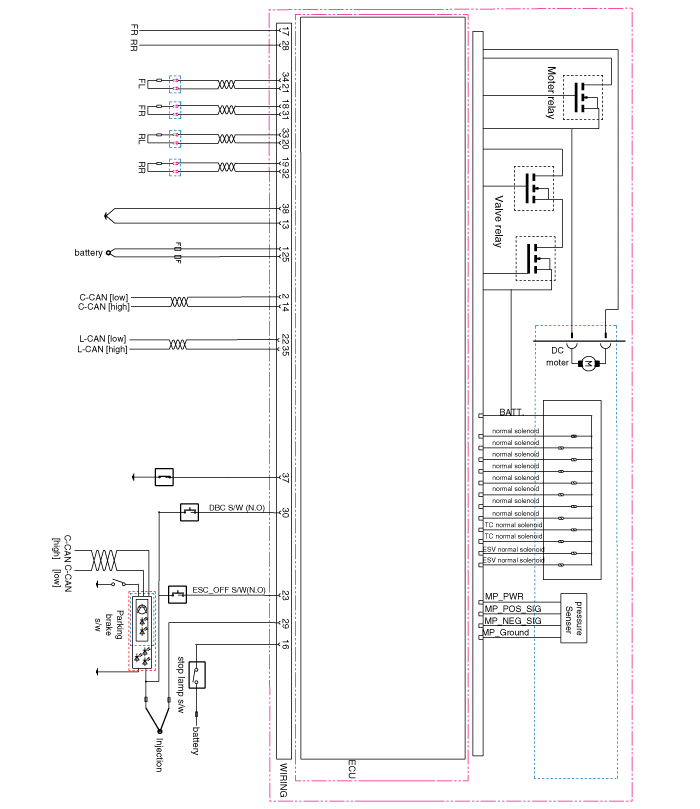

| Not applied for EPB |

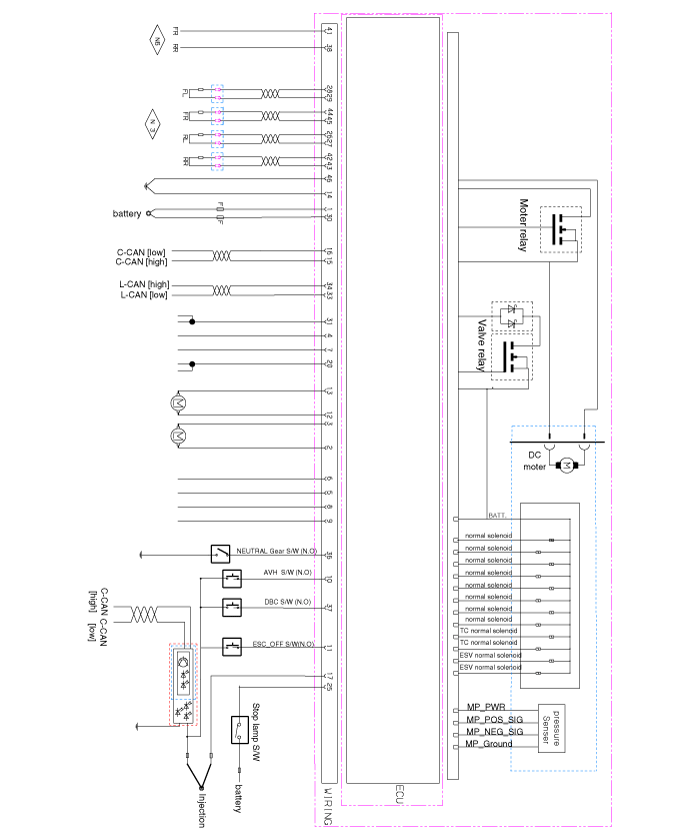

| Applied for EPB |
| Terminal Function |

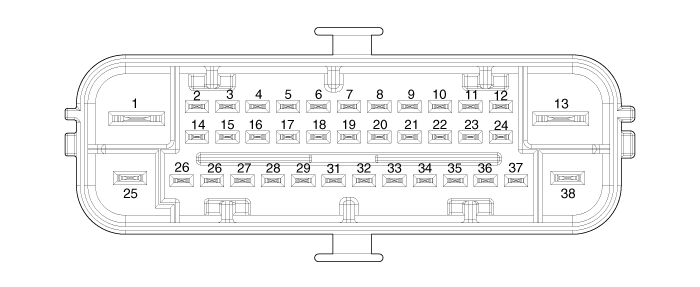

| Not applied for EPB |
|
Pin No |
Description |
Current (AMPS) |
Resistance (mΩ) |
Remark |
|
1 |
POS. BATTERY 2.(MOTOR) |
137(RUSH) |
10 |
|
|
2 |
C-CAN Low |
30 mA |
250 |
|
|
13 |
PUMP MOTOR GROUND |
137(RUSH) |
10 |
|
|
14 |
C-CAN High |
30 mA |
250 |
|
|
16 |
BRAKE LIGHT SWITCH |
10 mA |
250 |
|
|
17 |
SENSOR FRONT RIGHT OUTPUT |
16mA |
250 |
|
|
18 |
SENSOR FRONT RIGHT POWER |
30 mA |
250 |
|
|
19 |
SENSOR REAR RIGHT POWER |
30 mA |
250 |
|
|
20 |
SENSOR REAR LEFT SIGNAL |
16.8 mA |
250 |
|
|
21 |
SENSOR FRONT LEFT SIGNAL |
16.8 mA |
250 |
|
|
22 |
L-CAN High |
30 mA |
250 |
|
|
23 |
ESP OFF SWITCH |
10mA |
250 |
|
|
25 |
POS. BATTERY 1.(SOLENOID) |
40 |
10 |
|
|
28 |
SENSOR REAR RIGHT OUTPUT |
16mA |
250 |
|
|
29 |
IGN1(+) |
50 mA |
60 |
|
|
30 |
DBC SWITCH |
10 mA |
250 |
|
|
31 |
SENSOR FRONT RIGHT SIGNAL |
16.8 mA |
250 |
|
|
32 |
SENSOR REAR RIGHT SIGNAL |
16.8 mA |
250 |
|
|
33 |
SENSOR REAR LEFT POWER |
30 mA |
250 |
|
|
34 |
SENSOR FRONT LEFT POWER |
30 mA |
250 |
|
|
35 |
L-CAN Low |
30 mA |
250 |
|
|
37 |
CLUTCH SWITCH |
10 mA |
250 |
|
|
38 |
GROUND |
40 |
10 |
|

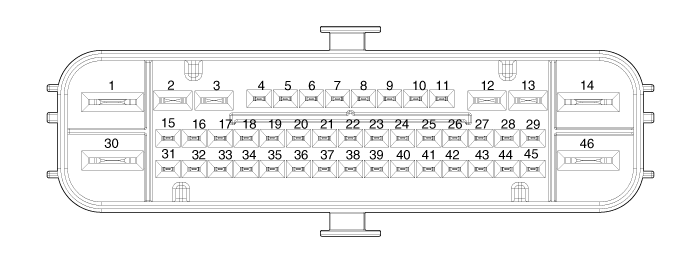

| Applied for EPB |
|
Pin No |
Description |
Current (AMPS) |
Resistance (mΩ) |
Remark |
|
1 |
POS. BATTERY 2.(MOTOR) |
137(RUSH) |
10 |
|
|
2 |
RR EPB MOTOR(-) |
20 |
10 |
|
|
3 |
RR EPB MOTOR(+) |
20 |
10 |
|
|
4 |
Clutch stroke sensor 1 |
2 mA |
250 |
|
|
5 |
EPB SWITCH 2 (Operation) |
30 mA |
250 |
|
|
6 |
EPB SWITCH 1 (Operation) |
30 mA |
250 |
|
|
7 |
Clutch stroke sensor 2 |
2 mA |
250 |
|
|
8 |
EPB SWITCH 3 (Release) |
30 mA |
250 |
|
|
9 |
EPB SWITCH 4 (Release) |
30 mA |
250 |
|
|
10 |
AVH SWITCH |
|
250 |
|
|
11 |
ESP OFF SWITCH |
10mA |
250 |
|
|
12 |
RL EPB MOTOR(-) |
2 mA |
250 |
|
|
13 |
RL EPB MOTOR(+) |
2 mA |
250 |
|
|
14 |
PUMP MOTOR GROUND |
137(RUSH) |
10 mΩ |
|
|
15 |
C-CAN High |
30 mA |
250 |
|
|
16 |
C-CAN Low |
30 mA |
250 |
|
|
17 |
IGN1(+) |
50 mA |
60 |
|
|
20 |
Clutch stroke sensor power |
50 mA |
250 |
|
|
25 |
BRAKE LIGHT SWITCH |
10 mA |
250 |
|
|
26 |
SENSOR REAR LEFT POWER |
30 mA |
250 |
|
|
27 |
SENSOR REAR LEFT SIGNAL |
16.8 mA |
250 |
|
|
28 |
SENSOR FRONT LEFT POWER |
30 mA |
250 |
|
|
29 |
SENSOR FRONT LEFT SIGNAL |
16.8 mA |
250 |
|
|
30 |
POS. BATTERY 1.(SOLENOID) |
40 |
10 mΩ |
|
|
31 |
Clutch stroke sensor ground |
16.8 mA |
250 |
|
|
33 |
L-CAN High |
30 mA |
250 |
|
|
34 |
L-CAN Low |
30 mA |
250 |
|
|
36 |
GEAR SWITCH |
10 mA |
250 |
|
|
37 |
DBC SWITCH |
10 mA |
250 |
|
|
41 |
SENSOR FRONT RIGHT OUTPUT |
16mA |
250 |
|
|
42 |
SENSOR REAR RIGHT POWER |
30 mA |
250 |
|
|
43 |
SENSOR REAR RIGHT SIGNAL |
16.8 mA |
250 |
|
|
44 |
SENSOR FRONT RIGHT POWER |
30 mA |
250 |
|
|
45 |
SENSOR FRONT RIGHT SIGNAL |
16.8 mA |
250 |
|
|
46 |
GROUND |
40 |
10 mΩ |
|
Description and operation
Description of ESP
Electronic Stability Program (ESP) recognizes critical driving conditions, such
as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-in ...
Repair procedures
ESP Bleeding of Brake System
This procedure should be followed to ensure adequate bleeding of air and filling
of the ESP unit, brake lines and master cylinder with brake fluid.
...
