Kia Sportage: Button Engine Start System / Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Button Engine Start System / Schematic diagrams

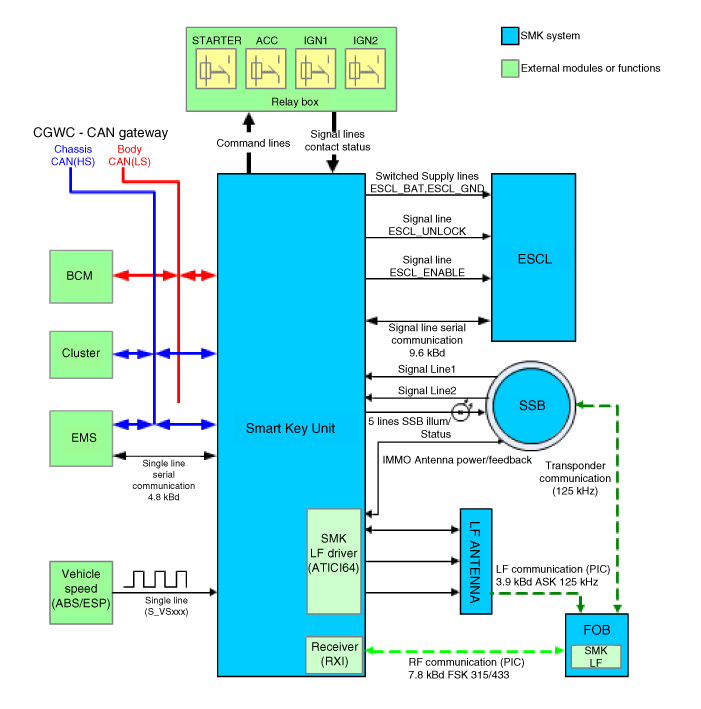

Circuit Diagram

Components and components location
Component Location 1. Smart key unit (SMK) 2. Body control module (BCM) 3. Interior antenna 1 4. Interior antenna 2 5. FOB key 6. Start Stop Button ...

Description and operation
Description System Overview The System offers the following features: – Changing the state of engine ignition and power by using the start button. ...
