Kia Sportage: Panorama Sunroof / Schematic diagrams
Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Panorama Sunroof / Schematic diagrams

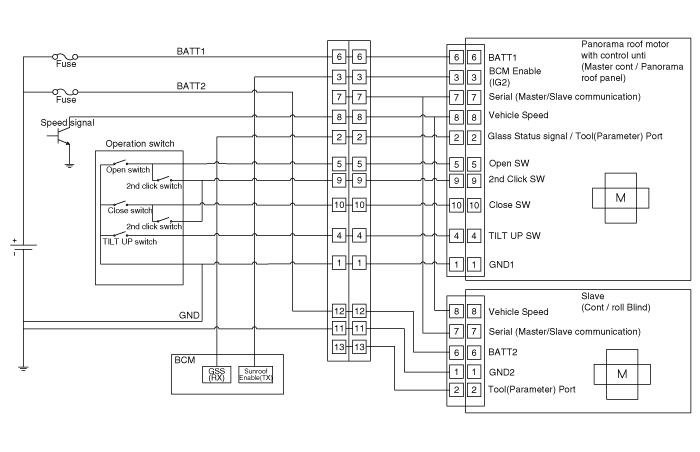

| Circuit Diagram |
|
No |
Sunroof wiring connector (Vehicle side) |
Sunroof wiring connector (Motor) |
Panorama glass motor (Master) |
Blind motor (Slave) |
|
|
|
|
|
|
|
1 |
Ground 1 |
Ground 1 |
Ground 2 |
|
|
2 |
Glass status signal / tool |
Glass status signal / tool |
- |
|
|
3 |
BCM Enable |
BCM Enable |
- |
|
|
4 |
Tilt up switch |
Tilt up switch |
- |
|
|
5 |
Blind & Glass open switch |
Blind & Glass open switch |
- |
|
|
6 |
Battery 1 |
Battery 1 |
Battery 2 |
|
|
7 |
- |
LIN Communication |
LIN Communication |
|
|
8 |
Vehicle speed signal |
Vehicle speed signal |
Vehicle speed signal |
|
|
9 |
Glass auto open / Blind auto close switch |
Glass auto open / Blind auto close switch |
- |
|
|
10 |
Glass & Blind close switch |
Glass & Blind close switch |
- |
|
|
11 |
Ground 2 |
|
|
|
|
12 |
Battery 2 |
|||
|
13 |
- |
|||
|
14 |
- |
|||
Components and components location
Component Location
1. Panorama sunroof
2. Panorama sunroof switch
3. Panorama sunroof motor & controller
4. Roller blind motor & slave controlle ...
