Component Location

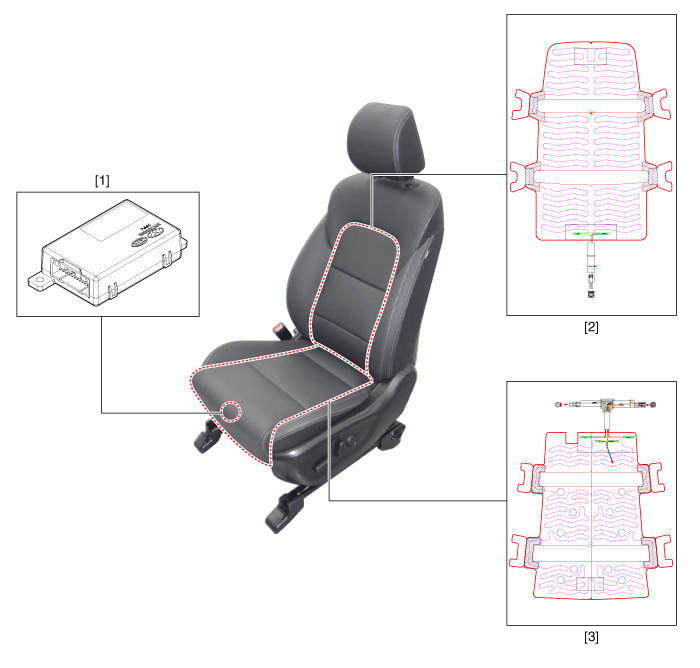

Front Seat Heater

1. Seat heater unit (Assist seat only)
2. Front seat back heater
3. Front seat cushion heater

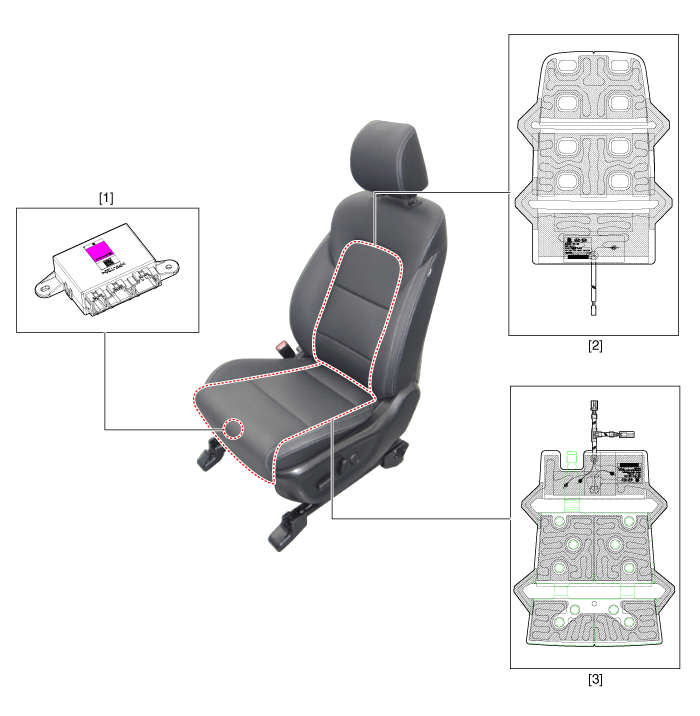

Front Seat Heater (Air Ventilation)

1. Air ventilation seat unit (Assist seat only)
2. Front seat back heater
3. Front seat cushion heater

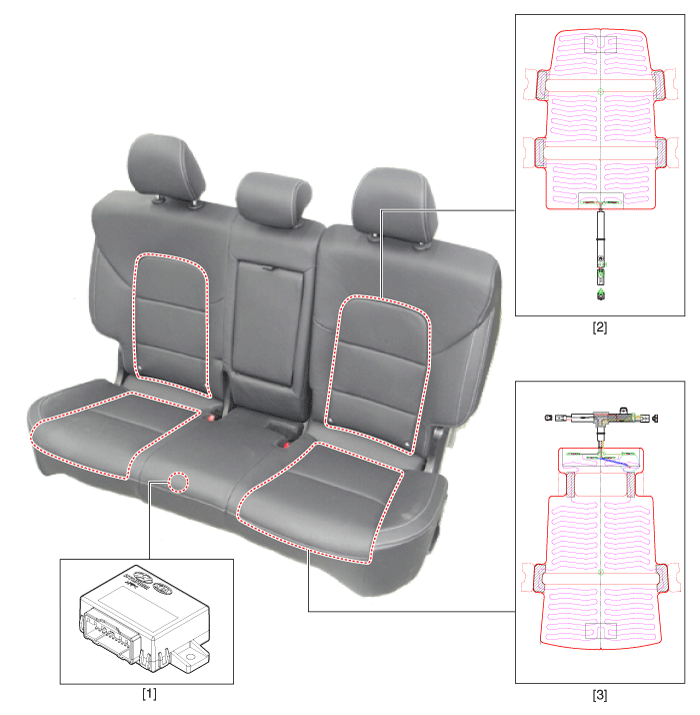

Rear Seat Heater

1. Rear seat heater unit
2. Rear seat back heater
3. Rear seat cushion heater

Power Seat Control Switch Repair procedures
Inspection Seat Control Switch 1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is ...

Seat Heater Schematic diagrams
Circuit Diagram Front Seat Heater Rear Seat Heater ...
