Kia Sportage: Engine Electrical System / Specifications

Kia Sportage QL (2015-2024) Service Manual / Engine Electrical System / Specifications

Specification
Ignition System
Ignition Coil
Item
Specification
Coil Input Voltage (V)
13.5

Item
Specification
Engine Time
(RPM)
1000
2000
3000
4000
5000
6000
7000
Dwell Time (ms)
3.94
3.94
3.62
3.29
3.02
2.81
2.65
Primary Current (A)
11.5
11.5
11.3
9.0
7.6
6.8
6.4
Coil Secondary Voltage (kV)
49
49
49
47
46
45
42

Spark Plug
Item
Specification
Type
SILZKR7E11
Gap
1.0 - 1.1 mm
(0.0394 - 0.0433 in.)
Electrode Material
Iridium

Charging System

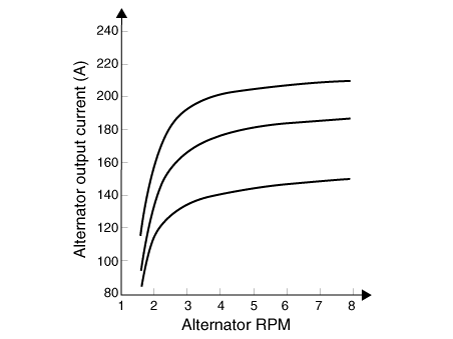

Alternator
Item
Specification
Rated voltage
13.5V , 140A
Speed in use
1,500 - 18,000rpm
Pin
3 (C, L, FR)
Pully Type
General pulley
Voltage regulator
IC Regulator built in type
Default regulated voltage (V) [COM terminal]
14.39 - 15.43 [-35°C (31°F)]
14.15 - 14.95 [25°C (77°F)]
13.23 - 14.49 [140°C (284°F)]
Regulator Setting Voltage (V) [COM terminal]
11.0 - 16.0
[5,000 rpm / min / 10A]

Battery
▷CMF68L-DIN
Item
Specification
Capacity [20 hr / 5 hr] (AH)
68 / 54
Cold Cranking Amperage (A)
600 (SAE) / 480 (EN)
Reserve Capacity (Min)
113
Voltage (V)
12


•

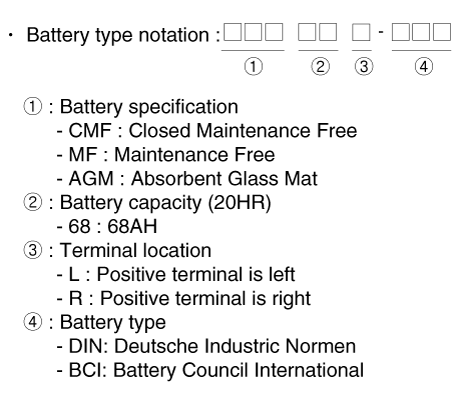

Model type description

•
Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
–
The rating is the number of amps a new, fully charged battery can deliver at -18°C(-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
–
The higher the CCA rating, the greater the starting power of the battery.
•
RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
–
The rating is the number of minutes a battery at 26.7°C(80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
–
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

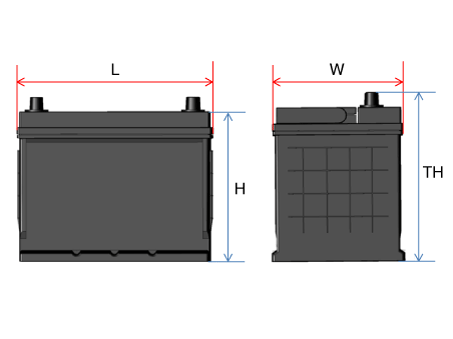

BCI Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
28/35
188 - 192
126 - 130
198 - 202
218 - 222
32/40
194 - 198
133 - 137
199 - 203
223 - 227
36/45
203 - 207
173 - 177
200 - 204
221 - 225
44/55
213 - 217
173 - 177
198 - 202
218 - 222
48/60
228 - 232
173 - 177
200 - 204
221 - 225
54/68
258 - 262
173 - 177
198 - 202
220 - 224
56/70
258 - 262
173 - 177
198 - 202
223 - 227
64/80
274 - 278
170 - 174
198 - 202
221 - 225
70/88
349 - 353
172 - 176
186 - 200
183 - 187
72/90
300 - 304
170 - 174
200 - 204
221 - 225
76/95
294 - 298
172 - 176
198 - 202
220 - 224
80/100
326 - 330
170 - 174
203 - 207
225 - 229

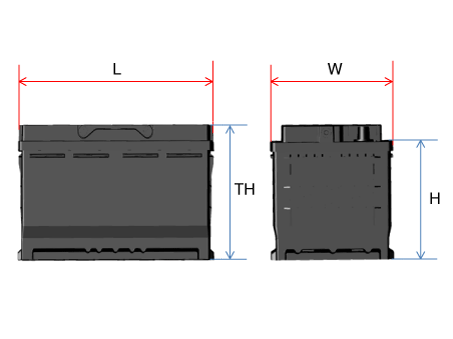

DIN Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
36/45
205 - 207
173 - 175
164 - 168
188 - 190
48/60
240 - 242
173 - 175
164 - 168
188 - 190
54/68
276 - 278
173 - 175
164 - 168
188 - 190
64/80
313 - 315
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
80/100
351 - 353
173 - 175
164 - 168
188 - 190
88/110
392 - 394
173 - 175
164 - 168
188 - 190

AGM DIN Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
40/50
205 - 207
173 - 175
164 - 168
188 - 190
48/60
227 - 229
173 - 175
164 - 168
188 - 190
56/70
276 - 278
173 - 175
164 - 168
188 - 190
64/80
312 - 314
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
84/105
392 - 394
173 - 175
164 - 168
188 - 190

Starting System
Starter
Item
Specification
Rated voltage
12 V, 1.2 kW
The number of pinion teeth
11
Performance
[No-load, 11V]
Ampere
Max. 70 A
Speed
Min. 2,400 rpm

Tightening Torques
Item
N·m
kgf·m
lb·ft
Ignition coil mounting bolt
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Spark plug
14.7 - 24.5
1.5 - 2.5
10.9 - 18.1
Alternator "B" terminal mounting nut
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Alternator mounting bolt
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0
Battery positive (+) terminal tightening nut
7.8 - 9.8
0.8 - 1.0
5.2 - 8.7
Battery negative (-) terminal tightening nut
4.0 - 6.0
0.4 - 0.6
3.0 - 4.4
Battery mounting bracket mounting bolt
8.8 - 13.7
0.9 - 1.4
6.5 - 10.1
Battery tray mounting bolt
8.8 - 13.7
0.9 - 1.4
6.5 - 10.1
Battery sensor cable mounting bolt (Chassis ground)
26.5 - 35.3
2.7 - 3.6
19.5 - 26.0
Starter mounting bolt
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0
