Kia Sportage: Automatic Transaxle Control System / SS-A Solenoid Valve (ON/OFF) Components and components location

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-A Solenoid Valve (ON/OFF) Components and components location

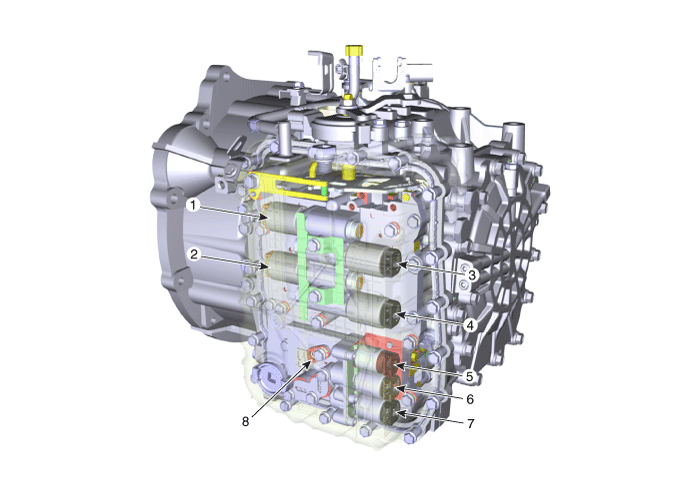

Component Location

1. 26 Brake Control Solenoid Valve (26/B)
2. 35R Clutch Control Solenoid Valve (35R/C)
3. Underdrive Brake Control Solenoid Valve (UD/B)
4. Overdrive Clutch Control Solenoid Valve (OD/C)

5. SS-A Solenoid Valve (ON/OFF)
6. Torque Converter Control Solenoid Valve (T/CON)
7. Line Pressure Control Solenoid Valve
8. Oil temperature sensor

SS-A Solenoid Valve (ON/OFF) Specifications

Specification Item Specification Control type ON/OFF Voltage (V) 9 - 16 Control p ...

SS-A Solenoid Valve (ON/OFF) Components and components location

Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...
