Kia Sportage: Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Schematic diagrams

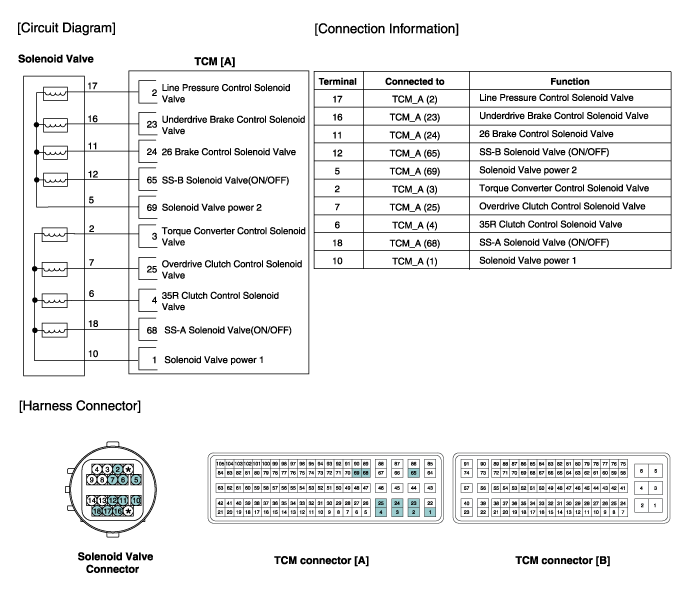

Circuit Diagram

Torque Converter Control Solenoid Valve (T/CON_VFS) Description and operation

Description • Torque converter control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable cur ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Repair procedures

Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
