Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box hosing.
(Refer to Body - "Glove Box Hosing")
3.

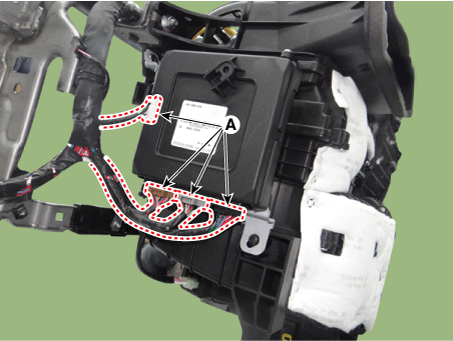

Disconnect the body control module connectors (A).

4.

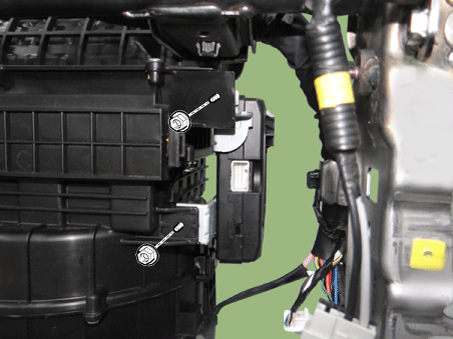

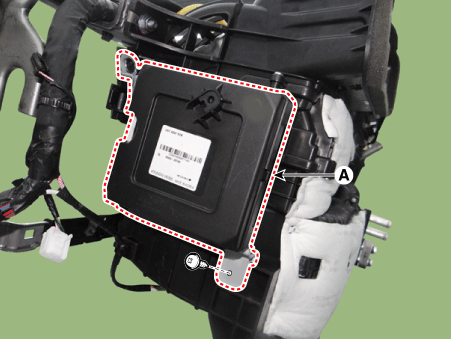

Loosen the nut and screw and then remove the body control module (BCM) (A).

5.
After replacing the receiver, learn by using self-diagnosis device(KDS/GDS).
Diagnosis procedure by using diagnostic device
The main contents of diagnostic method using diagnostic device are as follows:
1.
Connect self-diagnosis connector (16 pins) located in the lower driver side crash pad to self-diagnosis device, and then turn on the self-diagnosis device after key is ON.
2.

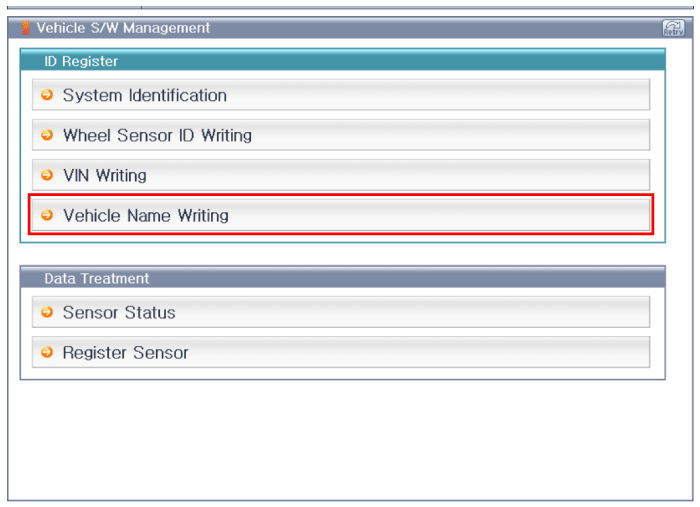

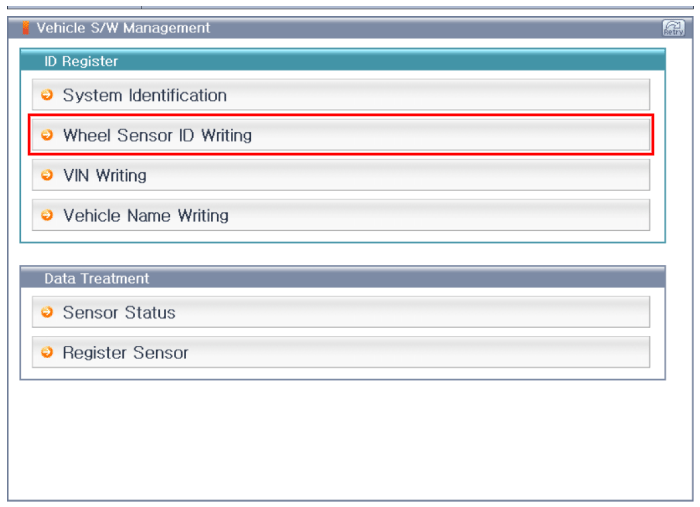

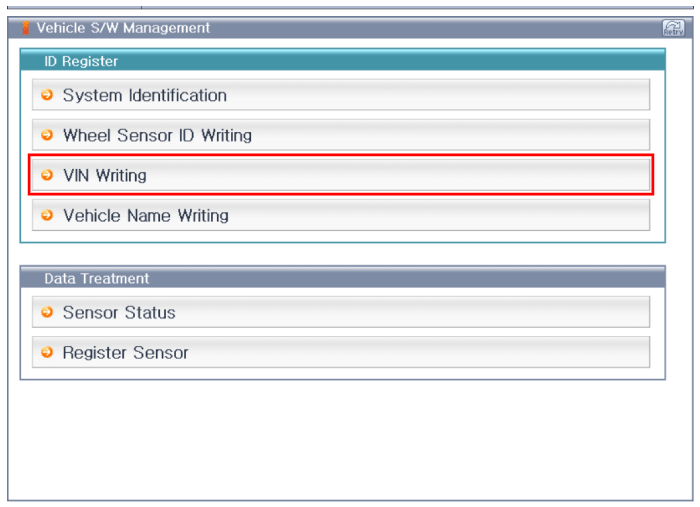

Select the "vehicle model" and "TPMS" on KDS/GDS vehicle selection screen, then select OK.

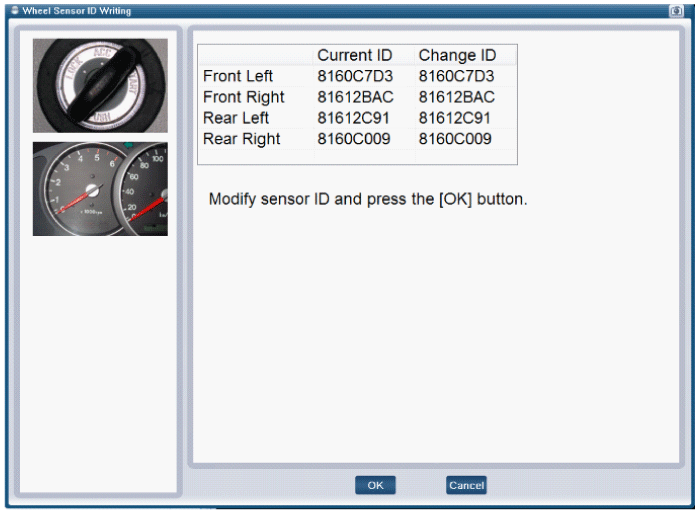

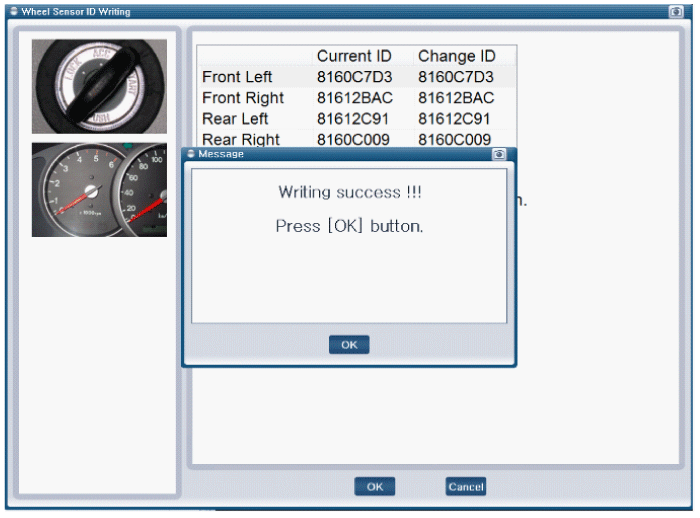

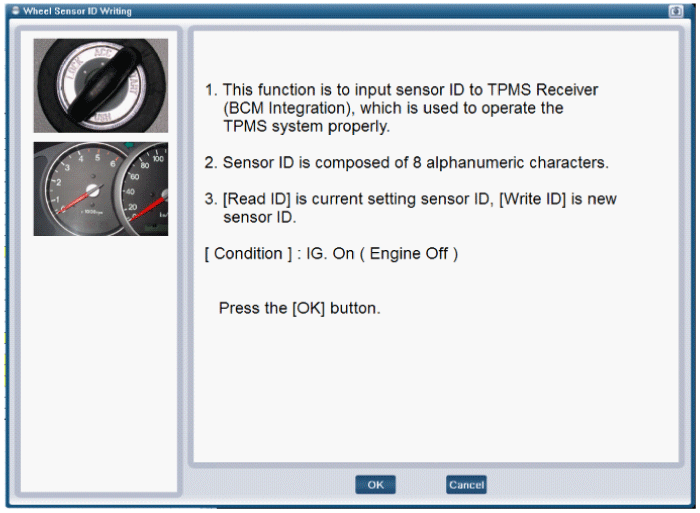

[Sensor ID Writing]

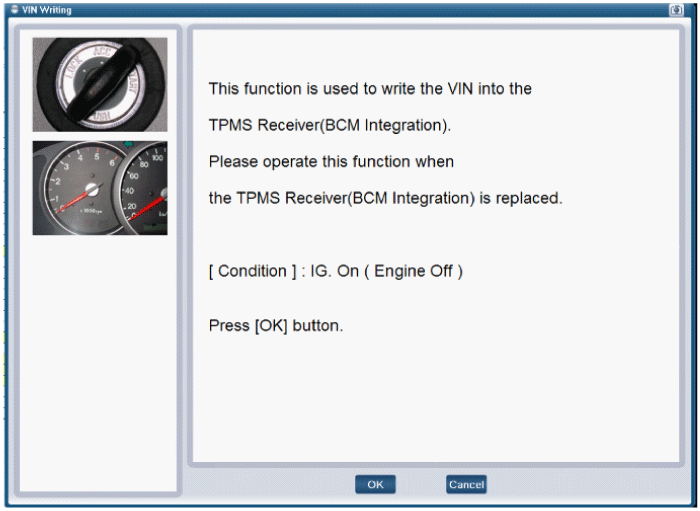

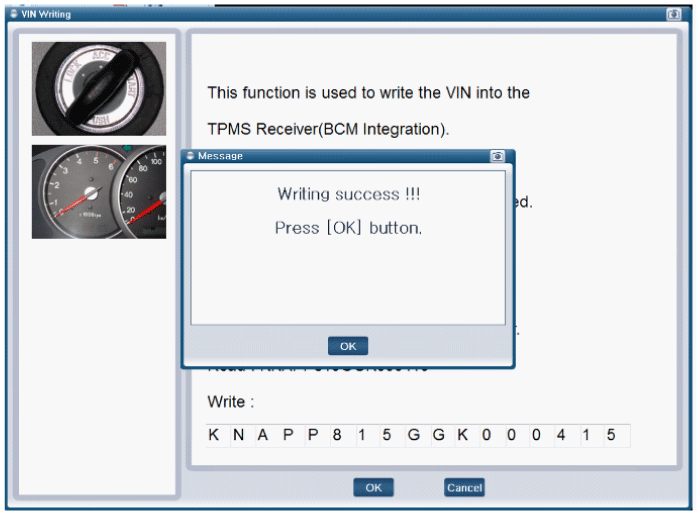

[VIN input initialization]

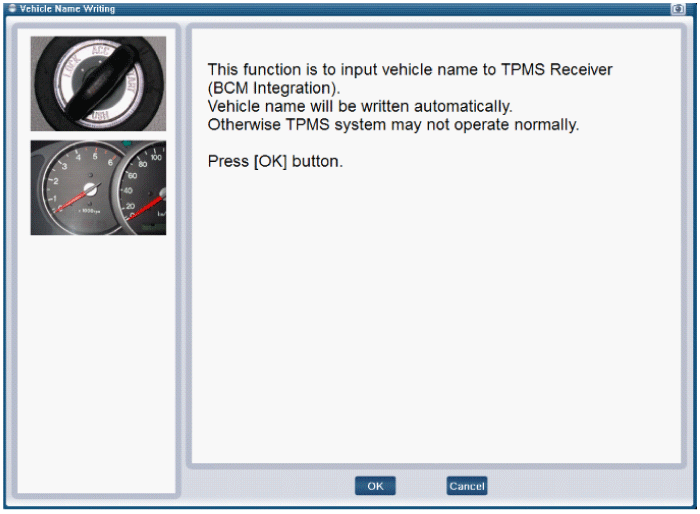

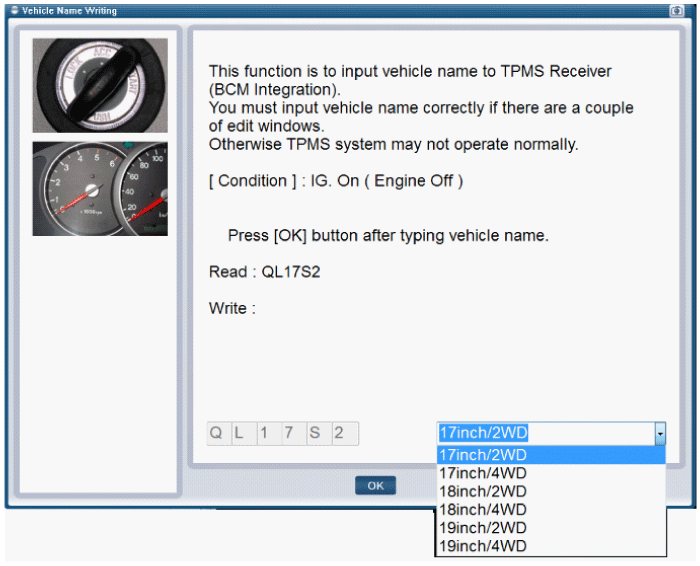

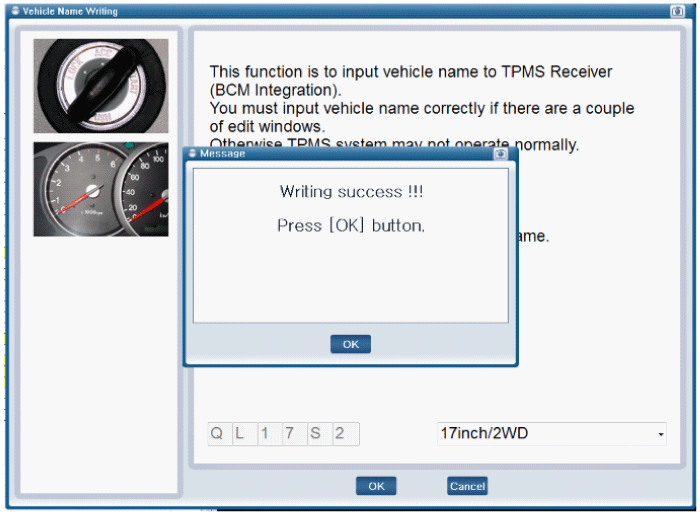

[Vehicle name input initialization]

TPMS Receiver Description and operation
Description 1. Mode (1) Virgin State • The receiver as a sole part is shipped ...
