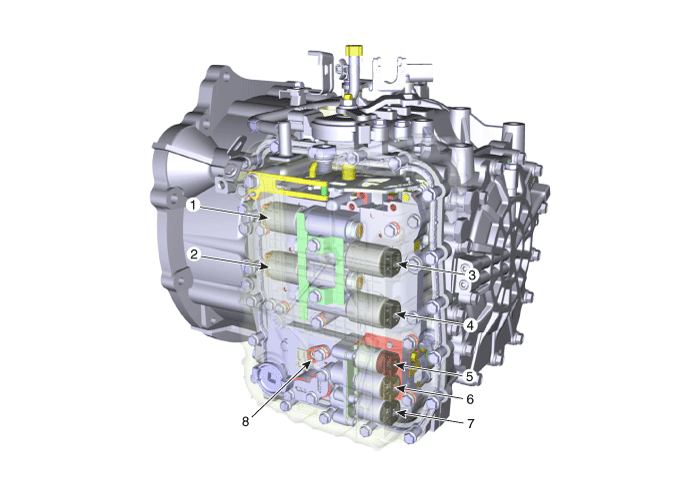

Component Location

1. 26 Brake Control Solenoid Valve (26/B)
2. 35R Clutch Control Solenoid Valve (35R/C)
3. Underdrive Brake Control Solenoid Valve (UD/B)
4. Overdrive Clutch Control Solenoid Valve (OD/C)
5. SS-A Solenoid Valve (ON/OFF)
6. Torque Converter Control Solenoid Valve (T/CON)
7. Line Pressure Control Solenoid Valve
8. Oil temperature sensor


Underdrive Brake Control Solenoid Valve (UD/B_VFS) Specifications
Specification Item Specification Control type N/H (Normal High) Control pressure (kpa (kgf/cm², psi)) ...

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Description and operation
Description • Underdrive brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable cur ...
