Kia Sportage: Timing System / Components and components location

Kia Sportage QL (2015-2025) Service Manual / Engine Mechanical System / Timing System / Components and components location

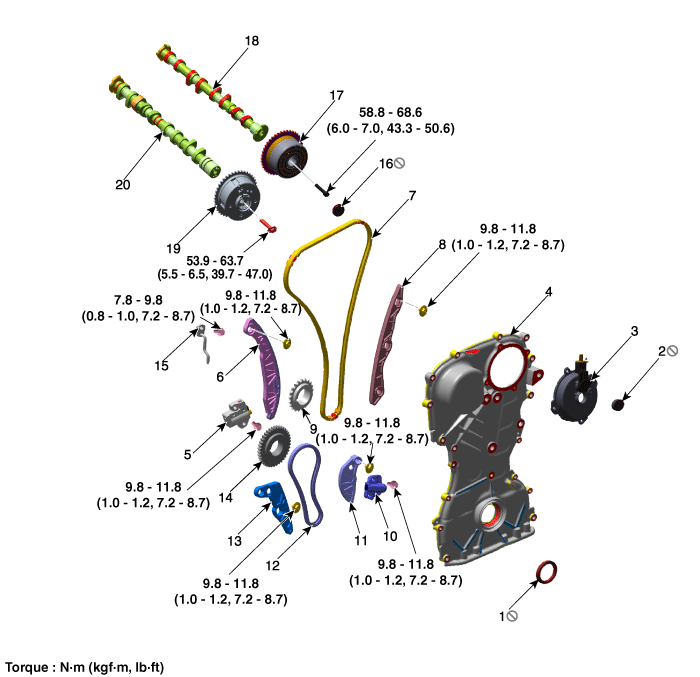

Components

1. Front oil seal
2. E-CVVT cover plug
3. E-CVVT assembly cover
4. Timing chain cover
5. Timing chain tensioner
6. Timing chain tensioner arm
7. Timing chain

8. Timing chain guide
9. Timing chain sprocket
10. Balance shaft chain tensioner
11. Balance shaft chain tensioner arm
12. Balance shaft chain
13. Balance shaft chain guide
14. Balance shaft chain sprocket

15. Timing chain oil jet
16. E-CVVT plug
17. Intake E-CVVT assembly
18. Intake camshaft
19. Exhaust CVVT assembly
20. Exhaust camshaft
