Kia Sportage: Timing System / Front Oil Seal Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Engine Mechanical System / Timing System / Front Oil Seal Repair procedures

Replacement

1.	Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley")

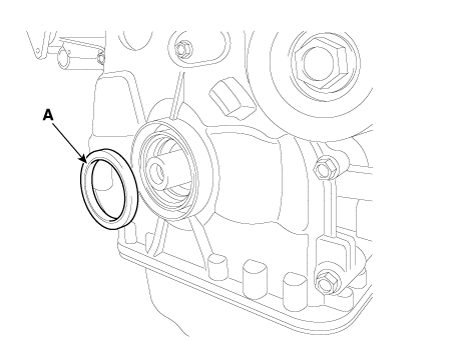

2.	Remove the front oil seal (A).

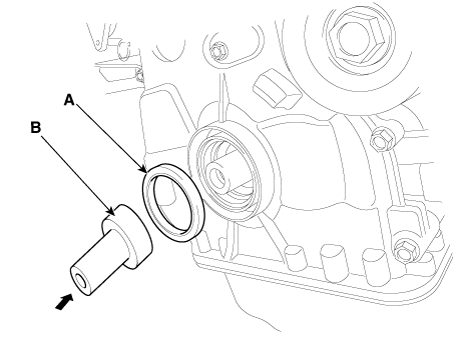

Install the crankshaft front oil seal (A) using SST (09214-3K000, 09231-H1100) (B).

Do not reuse the front oil seal.

4.	Install the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley")

Components and components location

Components 1. Front oil seal 2. E-CVVT cover plug 3. E-CVVT assembly cover 4. Timing chain cover 5. Timing chain tensioner 6. Timing chain tensione ...
