Kia Sportage: Exhaust Emission Control System / CVVT (Continuously Variable Valve Timing) System Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Emission Control System / Exhaust Emission Control System / CVVT (Continuously Variable Valve Timing) System Schematic diagrams

Circuit Diagram

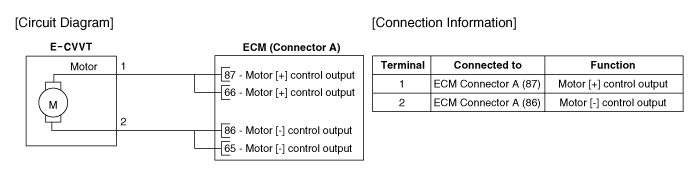

E-CVVT motor [Bank1/Intake]

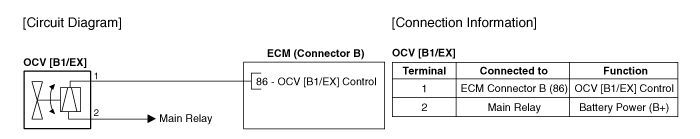

CVVT Oil Control Valve (OCV) [Bank1/Exhaust]

CVVT (Continuously Variable Valve Timing) System Description and operation
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is ...

CVVT (Continuously Variable Valve Timing) System Repair procedures
Inspection E-CVVT motor [Bank1/Intake] Refer to Engine Control / Fuel System - "E-CVVT motor" CVVT Oil Control Valve (OCV) [Bank1/Exhaust] Refe ...
