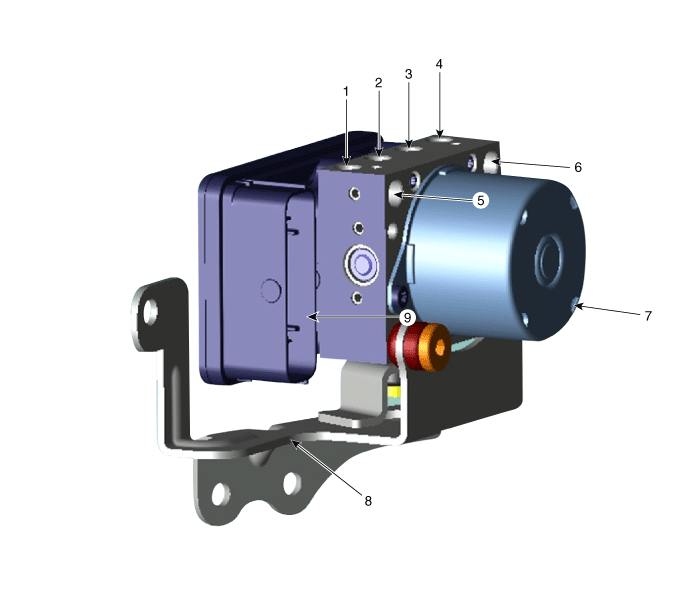

Components

1. Front - right tube (FR)
2. Rear - left tube (RL)
3. Rear - right tube (RR)
4. Front - left tube (FL)
5. MC2 (SEC)

6. MC1 (PRI)
7. ESP control module (HECU)
8. Bracket
9. VDC control module connector.

Troubleshooting

Failure Diagnosis 1. In principle, ESP and TCS controls are prohibited in case of ABS failure. 2. When ESP or TCS fails, only the fai ...

ESP Control Module Repair procedures

Removal [LHD] 1. Turn the ignition switch OFF and disconnect the negative (-) batrery terminal. 2. Remove the brake fluid from ...
