Kia Sportage: ESP(Electronic Stability Program) System / ESP Control Module Repair procedures
[LHD]
1. |
Turn the ignition switch OFF and disconnect the negative (-) batrery
terminal.
|
2. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
•
|
Be sure to completely remove foreign substances from
around brake fluid reservoir and cap before opening
the reservoir cap. If not, it may cause contamination
of brake fluid and deterioration in braking performance.
|
•
|
Do not spill brake fluid on the vehicle, it may damage
the paint; if brake fluid does contact the paint, wash
it off immediately with water.
|
|
|
3. |

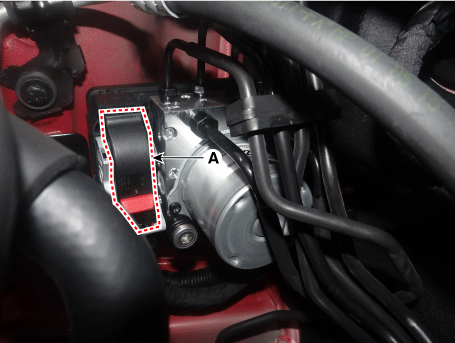

Pull up the lock of the HECU connector (A) and then disconnect the connector.
|
4. |

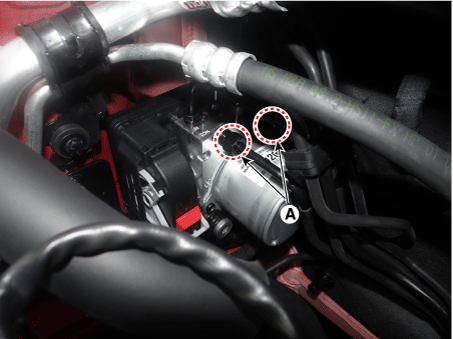

Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise
with a spanner.
Tightening torque :
12.7 - 16.7 N·m (1.3 - 1.7 kgf·m, 9.4 - 12.3 lb·ft)
|
Tightening torque :
18.6 - 22.6 N·m (1.9 - 2.3 kgf·m, 13.7 - 16.6 lb·ft)
|
|
5. |

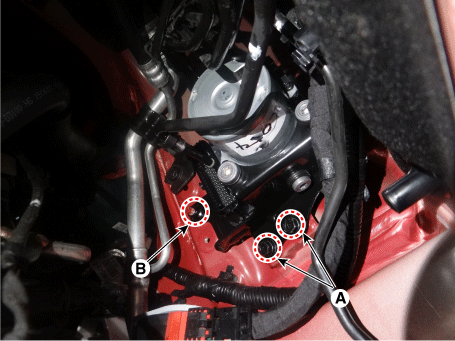

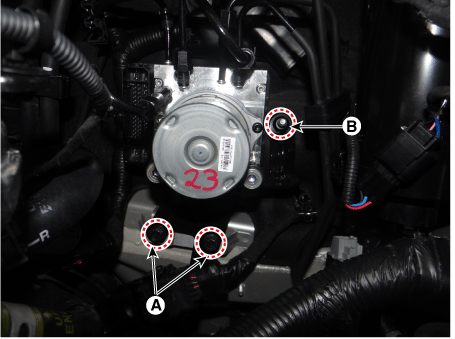

Loosen the HECU bracket bolts(A)&nut(B) and then remove HECU and bracket.
Tightening torque:
Mounting bolts : 16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8
lb·ft)
Mounting nut : 24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7
lb·ft)
|
|
6. |

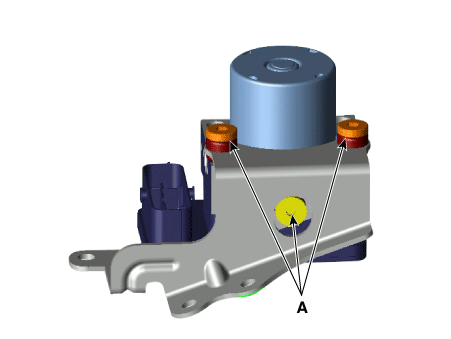

Remove the bolts and then remove the bracket from HECU.
Tightening torque :
10.8 - 13.7 N·m (1.1 - 1.4 kgf·m, 8.0 - 10.1 lb·ft)
|
1) |
Never attempt to disassemble the HECU.
|
|
|
[RHD]
1. |
Turn the ignition switch OFF and disconnect the negative (-) batrery
terminal.
|
2. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
•
|
Be sure to completely remove foreign substances from
around brake fluid reservoir and cap before opening
the reservoir cap. If not, it may cause contamination
of brake fluid and deterioration in braking performance.
|
•
|
Do not spill brake fluid on the vehicle, it may damage
the paint; if brake fluid does contact the paint, wash
it off immediately with water.
|
|
|
3. |

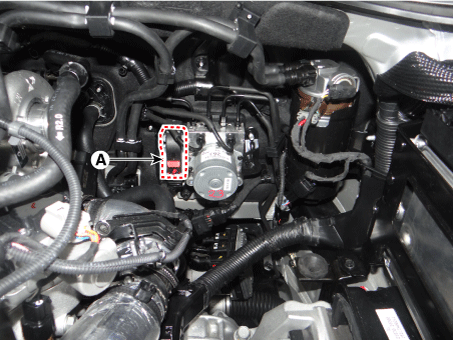

Pull up the lock of the HECU connector (A) and then disconnect the connector.
|
4. |
Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise
with a spanner.
Tightening torque :
A : 12.7 - 16.7 N·m (1.3 - 1.7 kgf·m, 9.4 - 12.3 lb·ft)
B : 18.6 - 22.6 N·m (1.9 - 2.3 kgf·m, 13.7 - 16.6 lb·ft)
|
|
5. |

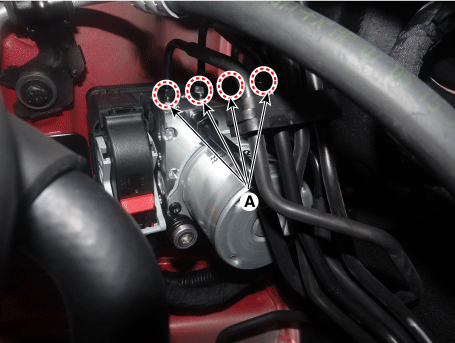

Loosen the HECU bracket bolts(A) & nut(B) and then remove HECU and bracket.
Tightening torque:
24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7 lb·ft)
|
|
6. |
Remove the bolts and then remove the bracket from HECU.
1) |
Never attempt to disassemble the HECU.
|
|
|
1. |
Installation is the reverse of removal.
|
2. |
Tighten the HECU mounting bolts and nuts to the specified torque.
|
3. |
After installation, bleed the brake system.
(Refer to Brake system - "Brake system Bleeding")
|
4. |

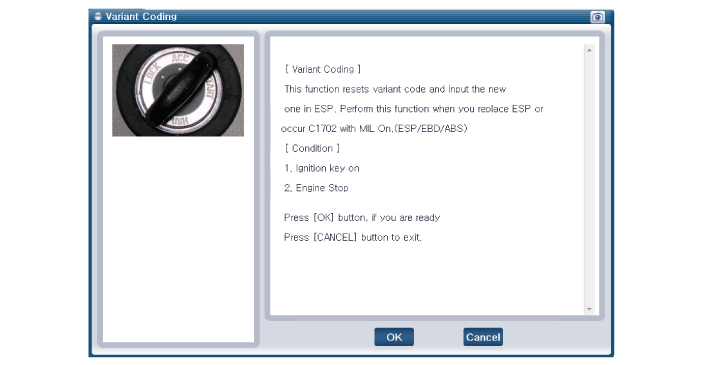

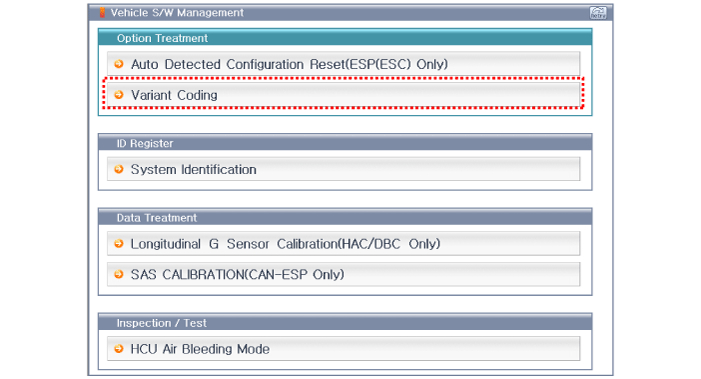

Conduct the Variant coding.
|
5. |

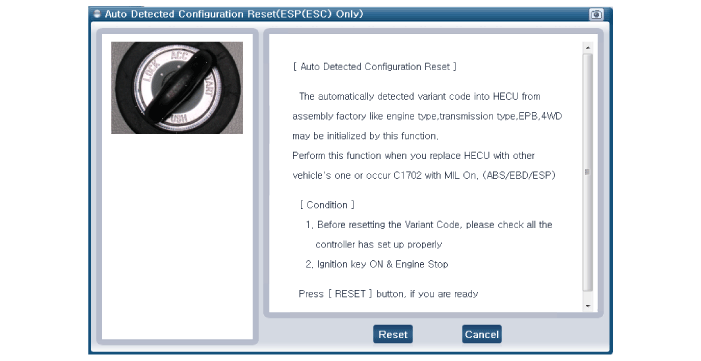

Conduct the Auto Detected Sensor Calibration.
|
6. |

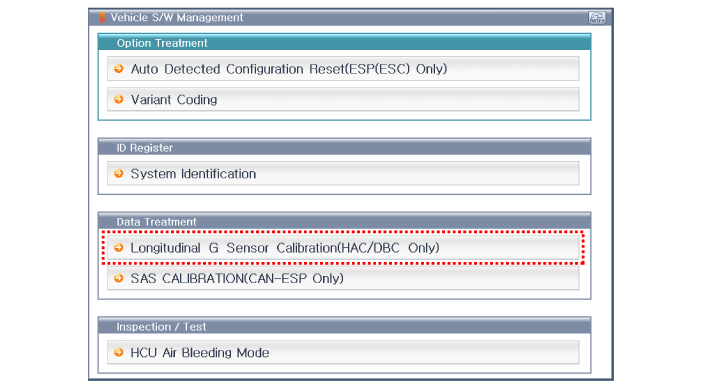

Conduct the Longitudinal G Sensor Calibration.
|
Diagnosis procedure by using
diagnostic device |
As manual for diagnosis methods by using diagnosis device, the main contents
are as follows:
Connect self-diagnosis connector(16pins) located in the lower of driver side
crash pad to self-diagnosis device, and then turn the self-diagnosis device
after key is ON.
Select the "vehicle model" and "ABS/ESC" on GDS vehicle selection screen, then
select OK.

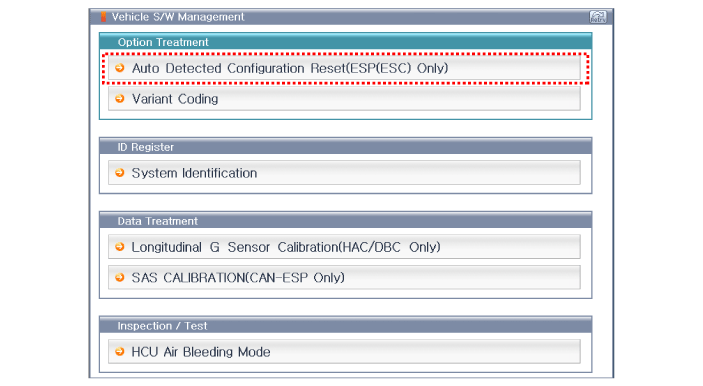

[Auto Detected Sensor Calibration] |

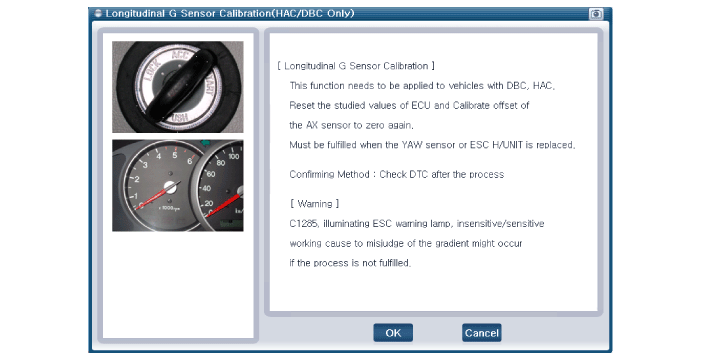

[Longitudinal G Sensor Calibration] |
Components
1. Front - right tube (FR)
2. Rear - left tube (RL)
3. Rear - right tube (RR)
4. Front - left tube (FL)
5. MC2 (SEC)
6. MC1 (PRI)
...
Description
1.
The ESP OFF switch is for the user to turn off the ESP system.
2.
The ESP OFF lamp is on when ESP OFF switch is engaged. ...
