Kia Sportage: AVN System / External AMP Components and components location

Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / AVN System / External AMP Components and components location

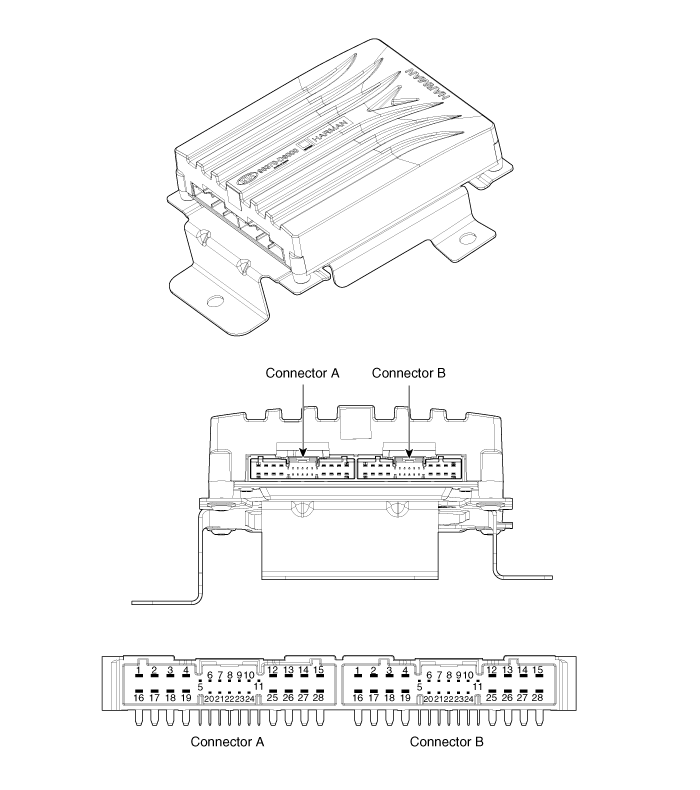

Components

Connector Pin Information
No.
Connector A
No.
Connector B
1
Battery (+)
1
Subwoofer2 speaker (+)
2
Battery (+)
2
Subwoofer1 speaker (+)
3
Battery (+)
3
Front right tweeter speaker (+)
4
Battery (+)
4
Front left tweeter speaker (+)
5
-
5
-
6
Multimedia-CAN (High)
6
-
7
Multimedia-CAN (Low)
7
-
8
ACC
8
-
9
Navigation voice (+)
9
-
10
-
10
-
11
-
11
-
12
-
12
Rear right door speaker (+)
13
-
13
Rear left door speaker (+)
14
-
14
Front center speaker (+)
15
-
15
-
16
Ground
16
Subwoofer2 speaker (-)
17
Ground
17
Subwoofer1 speaker (-)
18
Ground
18
Front right tweeter speaker (-)
19
Ground
19
Front left tweeter speaker (-)
20
SPDIF (High)
20
-
21
SPDIF (Low)
21
-
22
SPDIF (Ground)
22
-
23
Navigation voice (-)
23
-
24
-
24
-
25
-
25
Rear right door speaker (-)
26
-
26
Rear left door speaker (-)
27
-
27
Front center speaker (-)
28
-
28
-

Speaker Repair procedures
Inspection Troubleshooting of the speakers    When handling the speakers : • ...

External AMP Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the right luggage side trim. (Refer to Body - "Luggage ...
