Kia Sportage: Features of your vehicle / Instrument cluster

Kia Sportage QL (2015-2025) Owners Manual / Features of your vehicle / Instrument cluster

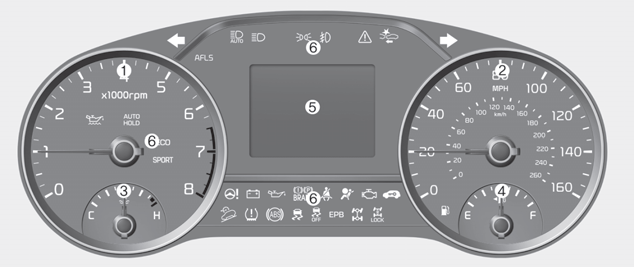

■ Type A

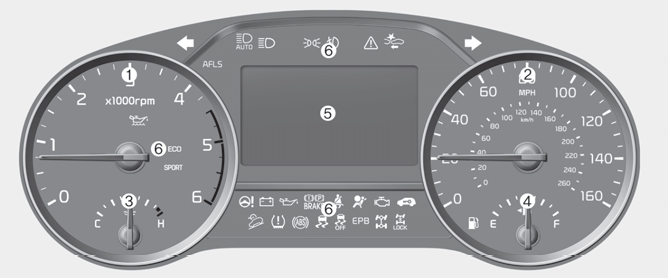

■ Type B

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights
