Kia Sportage: AVN System / Mic Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / AVN System / Mic Repair procedures

Inspection

1.	Disconnector the negative (-) battery terminal.

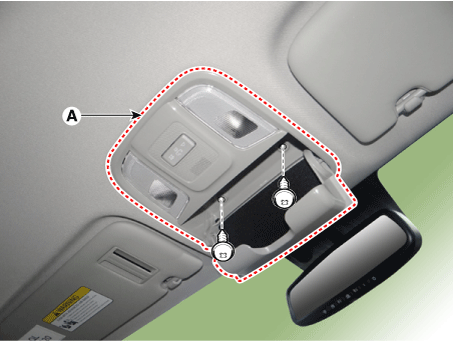

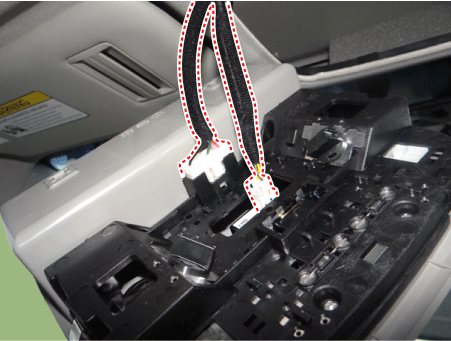

2.	Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

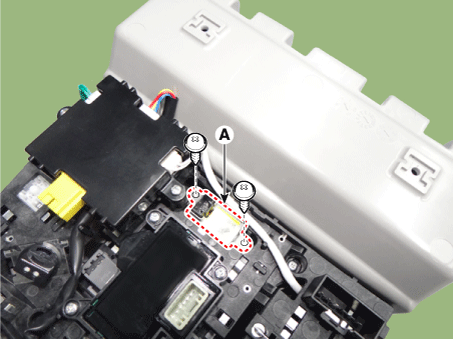

3.	Remove the hands free mic (A) after loosening the mounting screws.

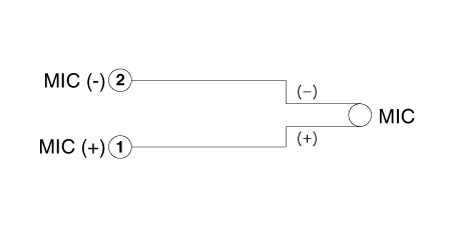

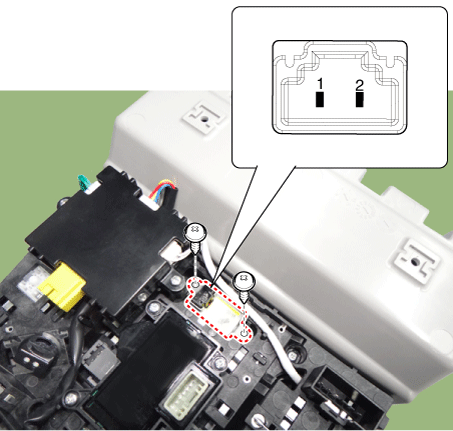

4.	Check the continuity of between terminals.
