| Removal |
Rear Combination Lamp (Outside)
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

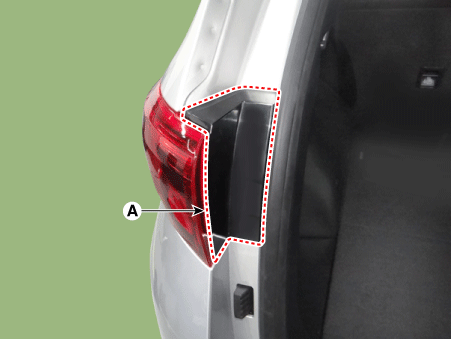

Using a screwdriver or remover, remove the rear combination lamp cover
(A).
|
| 3. |

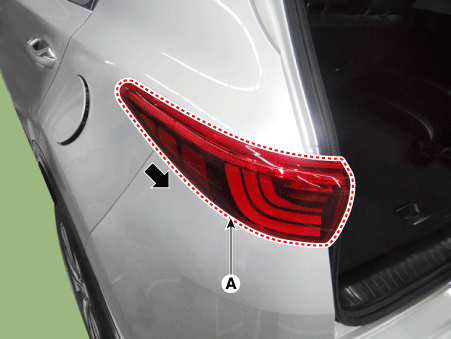

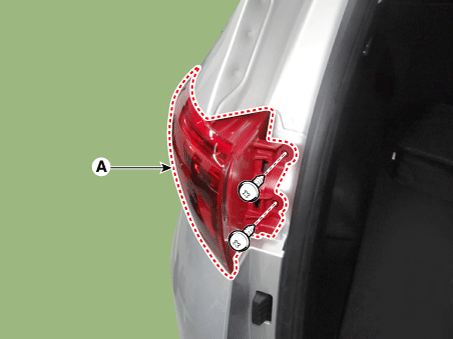

Remove the rear combination lamp (A) after loosening the screws.
|
| 4. |

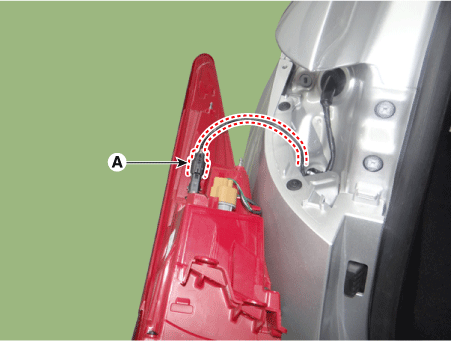

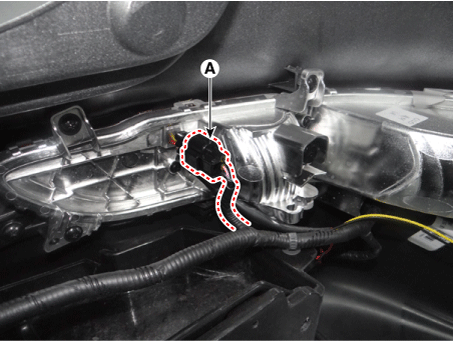

Disconnect the rear combination lamp connector (A).
|
Rear Combination Lamp (Inside)
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

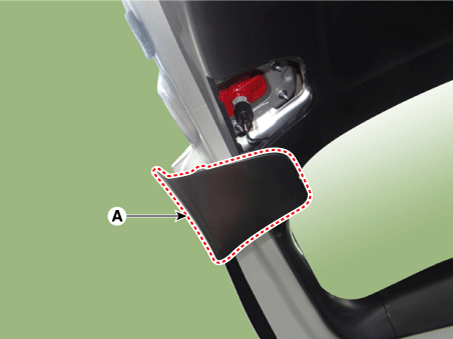

Using a screwdriver or remover, remove the rear combination lamp cover
(A).
|
| 3. |

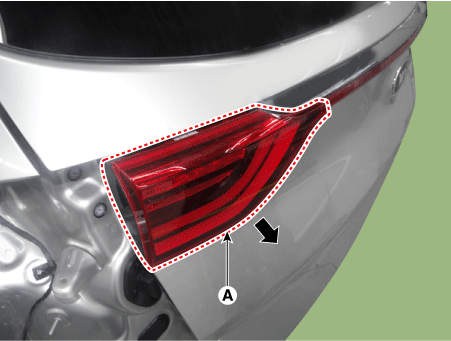

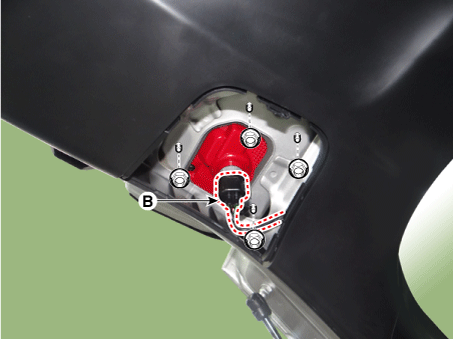

Disconnect the connector (B) and then remove the rear combination lamp
(A) after loosening the nuts.
|
Rear turn signal lamp & Back up lamp
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the rear bumper assembly.
(Refer to Body - "Rear bumper Cover")
|
| 3. |
Disconnect the rear turn signal lamp & back up lamp connector (A).
|
| 4. |

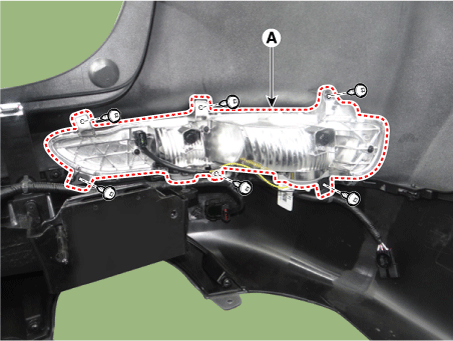

Remove the rear turn signal lamp & back up lamp (A) after loosening
the screws.
|
Bulb Replacement
| Rear turn signal lamp |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

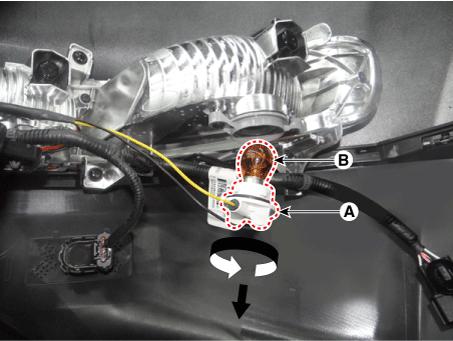

Remove the rear turn signal lamp bulb (B) by turning the socket (A)
counterclockwise.
|
| Back up lamp |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

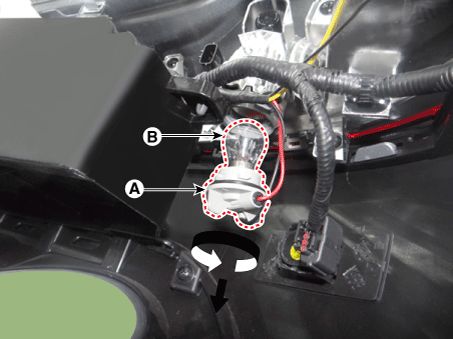

Remove the back up lamp bulb (B) by turning the socket (A) counterclockwise.
|
| Installation |
Rear Combination Lamp (Outside)
| 1. |
Connect the rear combination lamp connector.
|
| 2. |
Install the rear combination lamp.
|
| 3. |
Install the rear combination lamp cover.
|
| 4. |
Connect the negative (-) battery terminal.
|
Rear Combination Lamp (Inside)
| 1. |
Install the rear combination lamp.
|
| 2. |
Connect the rear combination lamp connector.
|
| 3. |
Install the rear combination lamp cover.
|
| 4. |
Connect the negative (-) battery terminal.
|
Rear turn signal lamp & Back up lamp
| 1. |
Install the rear turn signal lamp & back up lamp.
|
| 2. |
Install the rear bumper aseembly.
|
| 3. |
Connect the negative (-) battery terminal.
|
High Mounted Stop Lamp Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear spoiler.
(Refer to Body - "Rear Spoiler") ...
