Kia Sportage: Charging System / Repair procedures
| • |
Battery efficiency inspection
|
| • |
Battery voltage inspection
|
| • |
Charging voltage insptection
|
| • |
Terminal tightening state inspection
|
| • |
Engine/ transaxle ground state inspection
|
| • |
Wiring harness ground state inspection
|
| • |
Electrical Specified Value Inspection
|
| • |

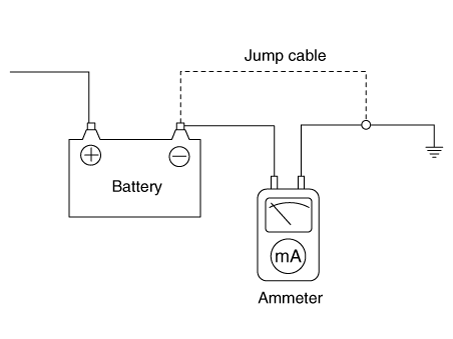

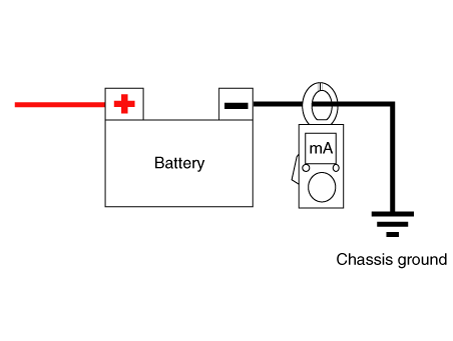

Vehicle parasitic current inspection
|
| • |
Battery capacity inspection
|
Battery Efficiency Inspection
| • |
Check that the battery cables are connected to the correct terminals.
|
| • |
Disconnect the battery cables when the battery is given a quick
charge.
|
| • |
Never disconnect the battery while the engine is running.
|
|
|
Inspect the battery test using the load tester and battery tester.
|
Battery Voltage Inspection
| 1. |
After having driven the vehicle and in the case that 20 minutes have
not passed after having stopped the engine, turn the ignition switch
ON and turn on the electrical system (headlamp, blower motor, rear defogger
etc.) for 60 seconds to remove the surface charge.
|
| 2. |
Turn the ignition switch OFF and turn off the electrical systems.
|
| 3. |
Measure the battery voltage between the negative (-) and positive (+)
terminals of the battery.
|
Standard voltage :
Approximately 12.5 - 12.9 V [20°C (68°F)]
|
If the voltage is less than specification, charge the battery.
|
General Inspection
| 1. |
Check that the battery terminals are not loose or corroded.
(Refer to Charging System - "Battery")
|
| 2. |
Check the fuses for continuity.
Alternator Fuse
| (1) |

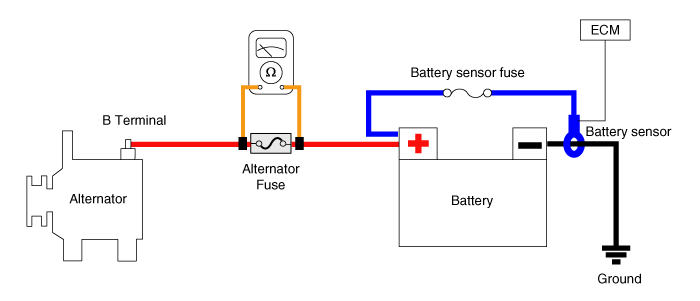

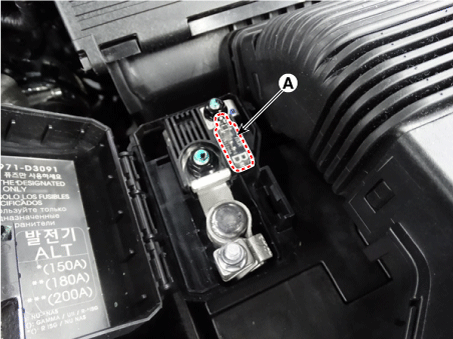

Check the alternator fuse (A) for continuity.
|
| (2) |

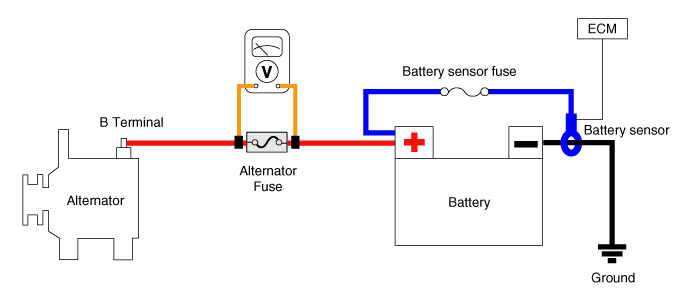

Measure the voltage as shown in the image below.
|
Standard value : Approximately 0 V
|
|
| (3) |
If the alternator fuse is blown, replace it as in the procedure
below:
| a. |
Turn ignition switch OFF and disconnect the battery
negative (-) terminal.
|
| b. |

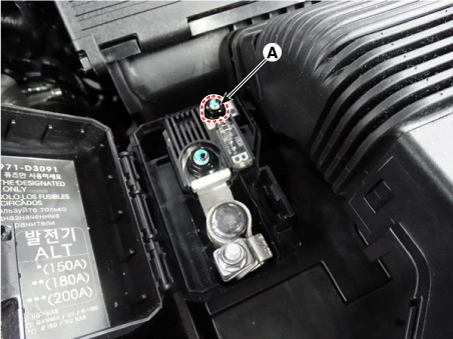

Remove the battery positive (+) cable mounting nuts
(A).
|
| c. |
Replace the norminal alternator fuse or battery cable.
|
| d. |
Install in the reverse order of removal.
|
|
Battery Sensor Fuse
| (1) |

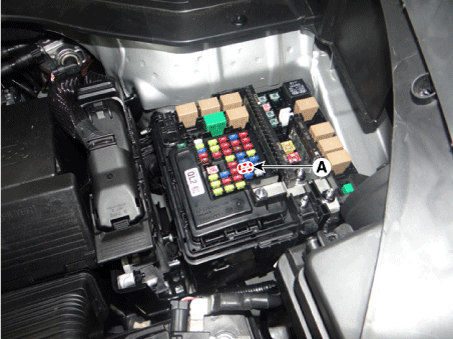

Check the battery sensor fuse (A) for continuity.
|
| (2) |
Replace the norminal battery sensor fuse.
|
| (3) |
Measure the voltage.
|
Standard value : Approximately 0 V
|
|
|
| 3. |
Inspect Drive Belt
| (1) |

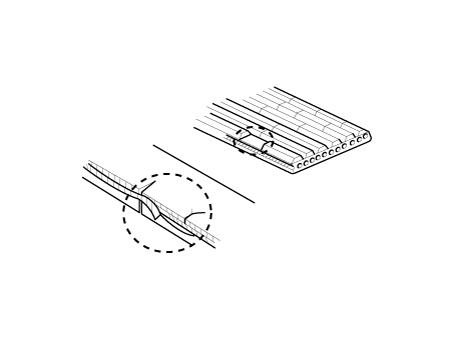

Visually check the belt for excessive wear, frayed cords etc.
If any defect has been found, replace the drive belt.
|
Cracks on the rib side of a belt are considered acceptable.
If the belt has chunks missing from the ribs, it should
be replaced.
|
|
|
| 4. |
Measure and adjust drive belt tension.
(Refer to Engine Mechanical System - "Drive Belt")
|
| 5. |
Visually check alternator wiring and listen for abnormal noises.
| (1) |
Check that the wiring is in good condition.
|
| (2) |
Check that there is no abnormal noise from the alternator while
the engine is running.
|
|
| 6. |
Check Discharge Warning Light Circuit
| (1) |
Warm up the engine and then turn it off.
|
| (2) |
Turn off all accessories.
|
| (3) |
Turn the ignition switch "ON". Check that the discharge warning
light is lit.
|
| (4) |
Start the engine. Check that the light is lit.
If the light does not go off as specified, troubleshoot the
discharge light circuit.
|
|
Terminal Tightening State Inspection
| • |
Alternator B+ terminal state
|
| • |
Alternator B+ termina tightening nut
|
| • |
Battery positive (+) terminal state
|
| • |
Battery positive (+) terminal tightening nut state
|
| • |
Battery negative (-) terminal state
|
| • |
Battery negative (-) terminal tightening nut state
|
| • |
Battery negative (-) terminal mounting bolt tightening state
(Chassis ground)
|
| • |
Battery sensor negative (-) terminal state (With battery sensor)
|
| • |
Battery sensor negative (-) terminal tightening nut state (With
battery sensor)
|
| • |
Battery sensor negative (-) terminal mounting bolt tightening
state (Chassis ground) [With battery sensor]
|
| • |
Engine room fuse & relay box positive (+) harness state
|
| • |
Engine room fuse & relay box positive (+) harness tightening
nut state
|
| • |
Check the status of ground fault by chassis paint
|
|

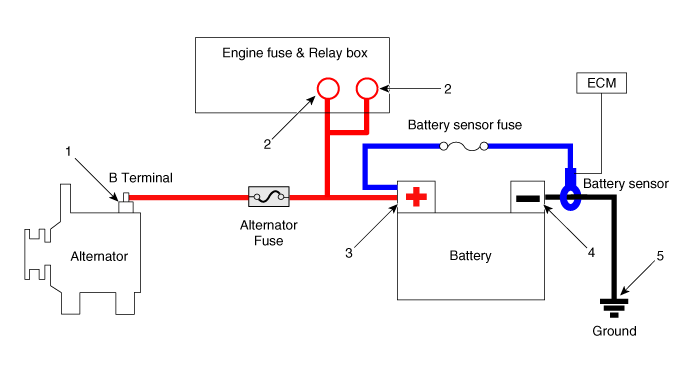

| Inspection Component Location |
1. Alternator B+ terminal
2. Engine room fuse & relay box positive (+) terminal
3. Battery negative (+) terminal
|
4. Battery negative (-) terminal
5. Chassis ground
|
Engine/ Transaxle Ground State Inspection
| • |
Mounting bolt tightening state (Chassis)
|
| • |
Mounting bolt tightening state (Engine)
|
| • |
Check the status of ground fault by chassis paint
|
|
Wiring harness ground state inspection
| • |
Mounting bolt tightening state (Chassis)
|
| • |
Mounting bolt tightening state (Engine)
|
| • |
Check the status of ground fault by chassis paint
|
|

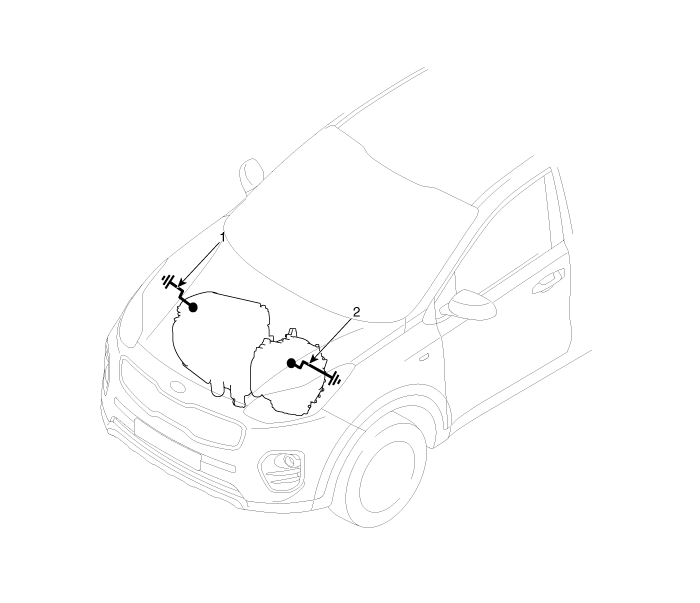

1. Engine ground (Engine ↔ Chassis)
2. Transaxle ground (Transaxle ↔ Chassis)
|
|
|
Check the ground point.
(Refer to ETM Harness Layout - "Ground Point")
|
Electrical Specified Value Inspection (Using the Voltmeter and Ammeter)
| 1. |

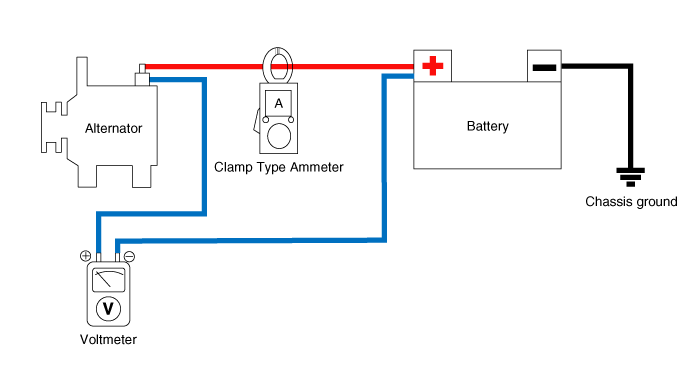

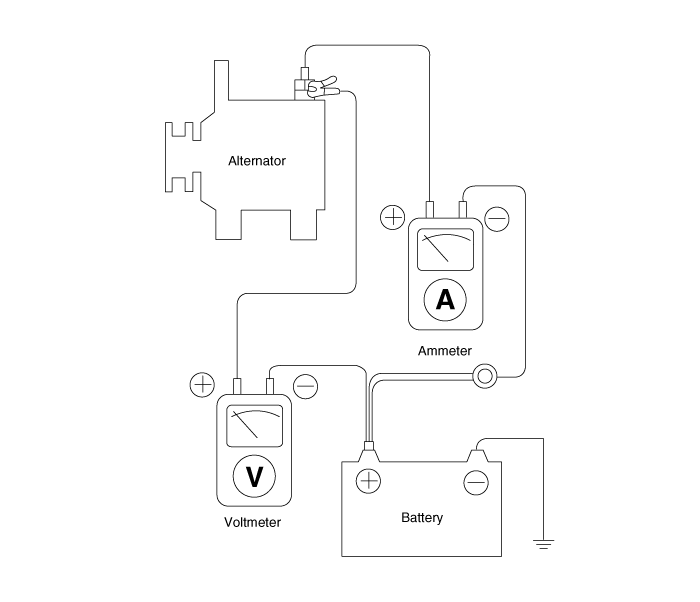

Voltage Drop Test of Alternator Output Wire
This test determines whether or not the wiring between the alternator
"B" terminal and the battery (+) terminal is good by the voltage drop
method.
| (1) |
Preparation
| a. |
Turn the ignition switch to "OFF".
|
| b. |
Disconnect the output wire from the alternator "B" terminal.
Connect the (+) lead wire of ammeter to the "B" terminal
of alternator and the (-) lead wire of ammeter to the
output wire. Connect the (+) lead wire of voltmeter
to the "B" terminal of alternator and the (-) lead wire
of voltmeter to the (+) terminal of battery.
|
|
| (2) |
Test
| b. |
Turn on the headlamps and blower motor, adjust the engine
speed until the ammeter indicates 20A and read the voltmeter.
|
|
| (3) |
Result
| a. |
The voltmeter may indicate the standard value.
|
Standard value : 0.2 V max
|
|
| b. |
If the value of the voltmeter is higher than expected
(above 0.2V max.), poor wiring is suspected. In this
case check the wiring from the alternator "B" terminal
to the battery (+) terminal. Check for loose connections,
color change due to an over-heated harness, etc. Correct
them before testing again.
|
| c. |
Upon completion of the test, set the engine speed at
idle.Turn off the headlamps, blower motor and the ignition
switch.
|
|
|
| 2. |
Output Current Test
This test determines whether or not the alternator gives an output current
that is equivalent to the normal output.
| (1) |
Preparation
| a. |
Prior to the test, check the following items and correct
as necessary.
Check the battery installed in the vehicle to ensure
that it is in good condition. Refer to the "Battery"
section for checking battery.
The battery used to test the output current should be
partially discharged.
With a fully charged battery, the test may not be conducted
correctly due to an insufficient load.
Check the tension of the alternator drive belt. Refer
to the "Inspect drive belt" section for checking the
belt tension.
|
| b. |
Turn off the ignition switch.
|
| c. |
Disconnect the battery ground cable.
|
| d. |
Disconnect the alternator output wire from the alternator
"B" terminal.
|
| e. |
Connect a DC ammeter (0 to 150 A) in series between
the "B" terminal and the disconnected output wire. Be
sure to connect the (-) lead wire of the ammeter to
the disconnected output wire.
|
Tighten each connection securely, as a heavy
current will flow. Do not rely on clips.
|
|
| f. |
Connect a voltmeter (0 to 20 V) between the "B" terminal
and ground. Connect the (+) lead wire to the alternator
"B" terminal and (-) lead wire to a good ground.
|
| g. |
Connect the battery ground cable.
|
| h. |
Leave the engine hood open.
|
|
| (2) |
Test
| a. |
Check to see that the voltmeter reads the same value
as the battery voltage. If the voltmeter reads 0V, open
circuit in the wire between alternator "B" terminal
and battery (+) terminal or poor grounding is suspected.
|
| b. |
Start the engine and turn on the headlamps.
|
| c. |
Set the headlamps to high beam and the heater blower
switch to HIGH, quickly increase the engine speed to
2,500 rpm and read the maximum output current value
indicated by the ammeter.
|
After the engine start up, the charging current
quickly drops. Therefore, the above operation
must be done quickly to read the maximum current
value correctly.
|
|
|
| (3) |
Result
| a. |
The ammeter reading must be higher than the limit value.
If it is lower despite the alternator output wire is
in good condition, remove the alternator from the vehicle
and test it.
|
Limit value : 60% of the current rate
|
|
The nominal output current value is shown on
the nameplate affixed to the alternator body.
|
|
The output current value changes with the electrical
load and the temperature of the alternator itself.
Therefore, the nominal output current may not
be obtained. If such is the case, keep the headlamps
on to discharge the battery or use lights of
other vehicles to increase the electrical load.
The nominal output current may not be obtained
if the temperature of the alternator itself
or ambient temperature is too high. In such
a case, reduce the temperature before testing
again.
|
|
| b. |
Upon completion of the output current test, lower the
engine speed to idle and turn off the ignition switch.
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Remove the ammeter and voltmeter and the engine tachometer.
|
| e. |
Connect the alternator output wire to the alternator
"B" terminal.
|
| f. |
Connect the battery negative (-) terminal.
|
|
|
| 3. |

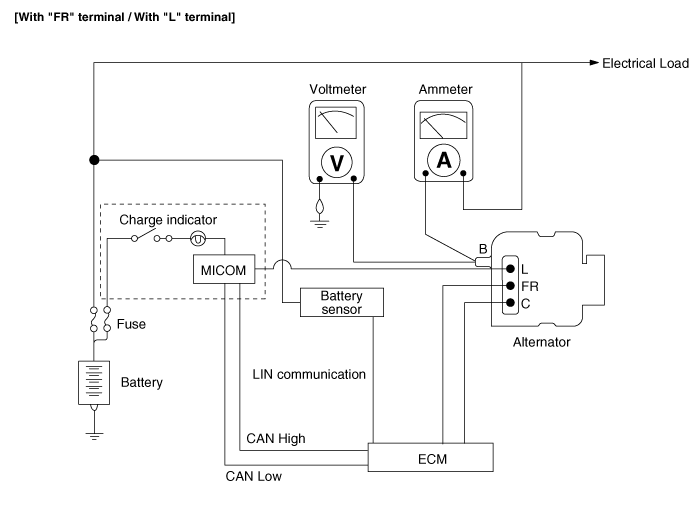

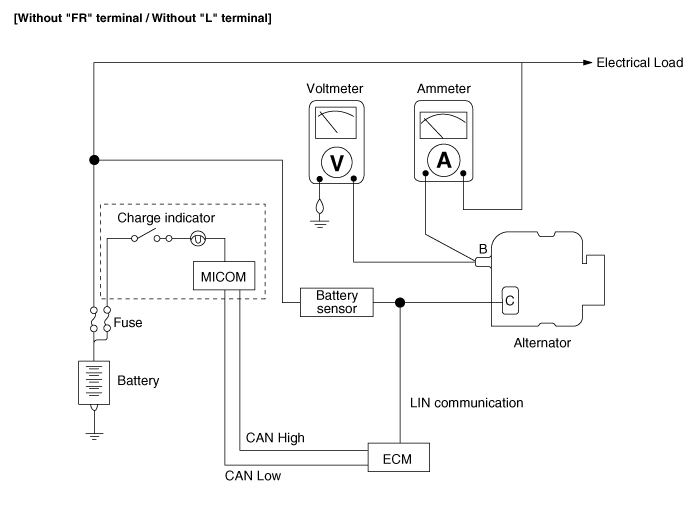

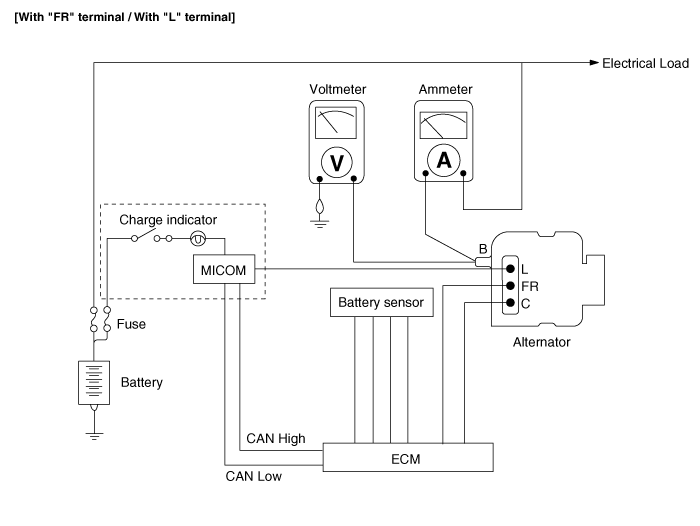

Regulated Voltage Test
The purpose of this test is to check that the electronic voltage regulator
controls voltage correctly.
| (1) |
Preparation
| a. |
Prior to the test, check the following items and correct
if necessary.
Check that the battery installed on the vehicle is fully
charged. Refer to the "Battery" section for checking
the battery.
Check the alternator drive belt tension. Refer to the
"Inspect drive belt" section for checking the belt tension.
|
| b. |
Turn ignition switch to "OFF".
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Connect a digital voltmeter between the "B" terminal
of the alternator and ground. Connect the (+) lead of
the voltmeter to the "B" terminal of the alternator.
Connect the (-) lead to good ground or the battery (-)
terminal.
|
| e. |
Disconnect the alternator output wire from the alternator
"B" terminal.
|
| f. |
Connect a DC ammeter (0 to 150A) in series between the
"B" terminal and the disconnected output wire. Connect
the (-) leadwire of the ammeter to the disconnected
output wire.
|
| g. |
Connect the battery negative (-) terminal.
|
|
| (2) |
Test
| a. |
Turn on the ignition switch and check to see that the
voltmeter indicates the following value.
|
Voltage : Battery voltage
|
If it reads 0 V, there is an open circuit in the wire
between the alternator "B" terminal and the battery
and the battery (-) terminal.
|
| b. |
Start the engine. Keep all lights and accessories off.
|
| c. |
Run the engine at a speed of about 2,500 rpm and read
the voltmeter when the alternator output current drops
to 10 A or less
|
|
| (3) |
Result
| a. |
If the voltmeter reading doesn't agree with the standard
value, the voltage regulator or the alternator is faulty.
|
Regulated Voltage : 11.7 - 15.3 V
|
|
| b. |
If the voltmeter reading doesn't agree with the standard
value, the voltage regulator or the alternator is faulty.
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Remove the voltmeter and ammeter.
|
| e. |
Connect the alternator output wire to the alternator
"B" terminal.
|
| f. |
Connect the battery negative (-) terminal.
|
|
|
Electrical Specified Value Inspection (Using the Voltmeter and Clamp type Ammeter)
| 1. |
Voltage Drop Test of Alternator Output Wire
This test determines whether or not the wiring between the alternator
"B" terminal and the battery (+) terminal is good by the voltage drop
method.
| (1) |
Preparation
| a. |
Turn the ignition switch to "OFF".
|
| b. |
Install the clamp type ammeter between battery positive
(+) and alternator "B" terminal.
|
| c. |
Connect the (+) lead wire of voltmeter to the "B" terminal
of alternator and the (-) lead wire of voltmeter to
the (+) terminal of battery.
|
|
| (2) |
Test
| b. |
Turn on the headlamps and blower motor, adjust the engine
speed until the ammeter indicates 20A and read the voltmeter.
|
|
| (3) |
Result
| a. |
The voltmeter may indicate the standard value.
|
Standard value : 0.2 V max
|
|
| b. |
If the value of the voltmeter is higher than expected
(above 0.2 V max.), poor wiring is suspected. In this
case check the wiring from the alternator "B" terminal
to the battery (+) terminal. Check for loose connections,
color change due to an over-heated harness, etc. Correct
them before testing again.
|
| c. |
Upon completion of the test, set the engine speed at
idle.Turn off the headlamps, blower motor and the ignition
switch.
|
|
|
| 2. |
Output Current Test
This test determines whether or not the alternator gives an output current
that is equivalent to the normal output.
| (1) |
Preparation
| a. |
Prior to the test, check the following items and correct
as necessary.
Check the battery installed in the vehicle to ensure
that it is good condition. Refer to the "Battery" section
for checking the battery.
The battery used to test the output current should be
partially discharged.
With a fully charged battery, the test may not be conducted
correctly due to an insufficient load.
Check the tension of the alternator drive belt. Refer
to the "Inspect drive belt" section for checking the
belt tension.
|
| b. |
Turn off the ignition switch.
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Install the clamp type ammeter between battery positive
(+) and alternator "B" terminal.
|
| e. |
Connect a DC ammeter (0 to 150 A) in series between
the "B" terminal and the disconnected output wire. Be
sure to connect the (-) lead wire of the ammeter to
the disconnected output wire.
|
Tighten each connection securely, as a heavy
current will flow. Do not rely on clips.
|
|
| f. |
Connect a voltmeter (0 to 20 V) between the "B" terminal
and ground. Connect the (+) lead wire to the alternator
"B" terminal and (-) lead wire to a good ground.
|
| g. |
Connect the battery negative (-) terminal.
|
| h. |
Leave the engine hood open.
|
|
| (2) |
Test
| a. |
Check to see that the voltmeter reads the same value
as the battery voltage. If the voltmeter reads 0V, open
circuit in the wire between alternator "B" terminal
and battery (+) terminal or poor grounding is suspected.
|
| b. |
Start the engine and turn on the headlamps.
|
| c. |
Set the headlamps to high beam and the heater blower
switch to HIGH, quickly increase the engine speed to
2,500 rpm and read the maximum output current value
indicated by the ammeter.
|
After the engine start up, the charging current
quickly drops. Therefore, the above operation
must be done quickly to read the maximum current
value correctly.
|
|
|
| (3) |
Result
| a. |
The ammeter reading must be higher than the limit value.
If it is lower despite the alternator output wire is
in good condition, remove the alternator from the vehicle
and test it.
|
Limit value : 60% of the voltage rate
|
|
The nominal output current value is shown on
the nameplate affixed to the alternator body.
|
|
The output current value changes with the electrical
load and the temperature of the alternator itself.
Therefore, the nominal output current may not
be obtained. If such is the case, keep the headlamps
on to discharge the battery or use lights of
other vehicles to increase the electrical load.
The nominal output current may not be obtained
if the temperature of the alternator itself
or ambient temperature is too high. In such
a case, reduce the temperature before testing
again.
|
|
| b. |
Upon completion of the output current test, lower the
engine speed to idle and turn off the ignition switch
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Remove the ammeter and voltmeter and the engine tachometer.
|
| e. |
Connect the alternator output wire to the alternator
"B" terminal.
|
| f. |
Connect the battery negative (-) terminal.
|
|
|
| 3. |
Regulated Voltage Test
The purpose of this test is to check that the electronic voltage regulator
controls voltage correctly.
| (1) |
Preparation
| a. |
Prior to the test, check the following items and correct
if necessary.
Check that the battery installed on the vehicle is fully
charged. Refer to the "Battery" section for checking
the battery.
Check the alternator drive belt tension. Refer to the
"Inspect drive belt" section for checking the belt tension.
|
| b. |
Turn ignition switch to "OFF".
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Connect a digital voltmeter between the "B" terminal
of the alternator and ground. Connect the (+) lead of
the voltmeter to the "B" terminal of the alternator.
Connect the (-) lead to good ground or the battery (-)
terminal.
|
| e. |
Disconnect the alternator output wire from the alternator
"B" terminal.
|
| f. |
Connect a DC ammeter (0 to 150A) in series between the
"B" terminal and the disconnected output wire.Connect
the (-) lead wire of the ammeter to the disconnected
output wire.
|
| g. |
Connect the battery negative (-) terminal.
|
|
| (2) |
Test
| a. |
Turn on the ignition switch and check to see that the
voltmeter indicates the following value.
|
Voltage : Battery voltage
|
If it reads 0V, there is an open circuit in the wire
between the alternator "B" terminal and the battery
and the battery (-) terminal.
|
| b. |
Start the engine. Keep all lights and accessories off.
|
| c. |
Run the engine at a speed of about 2,500 rpm and read
the voltmeter when the alternator output current drops
to 10A or less
|
|
| (3) |
Result
| a. |
If the voltmeter reading does not agree with the standard
value, the voltage regulator or the alternator is faulty.
|
Regulated Voltage : 11.7 - 15.3 V
|
|
| b. |
If the voltmeter reading does not agree with the standard
value, the voltage regulator or the alternator is faulty.
|
| c. |
Disconnect the battery negative (-) terminal.
|
| d. |
Remove the voltmeter and ammeter.
|
| e. |
Connect the alternator output wire to the alternator
"B" terminal.
|
| f. |
Connect the battery negative (-) terminal.
|
|
|
Vehicle parasitic current inspection
[Using the Ammeter]
| 1. |
Turn the all electric devices OFF, and then turn the ignition switch
OFF.
|
| 2. |
Close all doors except the engine hood, and then lock all doors.
| (1) |
Disconnect the hood switch connector.
|
| (3) |
Close the doors or remove the door switches.
|
|
| 3. |
Wait for a few minutes until the vehicle’s electrical systems go to
sleep mode.
|
For an accurate measurement of a vehicle parasitic current,
all electrical systems should go to sleep mode. (It takes at
least one hour or at most one day.) However, an approximate
vehicle parasitic current can be measured after 10 - 20 minutes.
|
|
| 4. |
Connect an ammeter in series between the battery (-) terminal and the
ground cable, and then disconnect the clamp from the battery (-) terminal
slowly.
| •
|
Be careful that the lead wires of an ammeter do not
come off from the battery (-) terminal and the ground
cable to prevent the battery from being reset. In case
the battery is reset, connect the battery cable again,
and then start the engine or turn the ignition switch
ON for more than 10 sec. Repeat the procedure from No.
1.
To prevent the battery from being reset during the inspection:
|
| 1) |
Connect a jump cable between the battery (-) terminal
and the ground cable.
|
| 2) |
Disconnect the ground cable from the battery (-) terminal.
|
| 3) |
Connect an ammeter between the battery (-) terminal
and the ground cable.
|
| 4) |
After disconnecting the jump cable, read the current
value of the ammeter.
|
|
|
| 5. |
Read the current value of the ammeter.
| • |
If the parasitic current is over the limit value, search for
abnormal circuit by removing the fuses one by one and checking
for parasitic current.
|
| • |
Reconnect only the fuse suspected of parasitic current and search
for the trouble unit by removing the components connected to
the circuit one by one until the parasitic draw drops below
limit value.
|
|
Limit value (after 10 - 20 min.) : Below 50 mA
|
|
[Using the Clamp type Ammeter]
| 1. |
Turn the all electric devices OFF, and then turn the ignition switch
OFF.
|
| 2. |
Close all doors except the engine hood, and then lock all doors.
| (1) |
Disconnect the hood switch connector.
|
| (3) |
Close the doors or remove the door switches.
|
|
| 3. |
Wait for a few minutes until the vehicle’s electrical systems go to
sleep mode.
|
For an accurate measurement of a vehicle parasitic current,
all electrical systems should go to sleep mode. (It takes at
least one hour or at most one day.) However, an approximate
vehicle parasitic current can be measured after 10 - 20 minutes.
|
|
| 4. |
Install the clamp type ammerter on battery negative (-) terminal.
|
| 5. |
Read the current value of the ammeter.
| • |
If the parasitic current is over the limit value, search for
abnormal circuit by removing the fuses one by one and checking
for parasitic current.
|
| • |
Reconnect only the fuse suspected of parasitic current and search
for the trouble unit by removing the components connected to
the circuit one by one until the parasitic draw drops below
limit value.
|
|
Limit value (after 10 - 20 min.) : Below 50 mA
|
|
Troubleshooting
•
Be careful not to short-circuit the wiring by the body or other
...
Other information:
This indicator light illuminates for up to 30 seconds:
When the vehicle detects the smart key in the vehicle properly while the
Engine Start/Stop Button is ACC or ON.
- At this time, you can start the engine.
- The indicator light goes off after starting the engine.
This indicator li ...
Seat belt systems should never be disassembled or modified. In addition, care
should be taken to assure that seat belts and belt hardware are not damaged by seat
hinges, doors or other abuse.
WARNING - Pinched seat belt
Make sure that the webbing and/or buckle does not get caught or pinched in ...
Schematic diagrams
Troubleshooting
