Kia Sportage: Anti-theft System / Siren & ACU (Alarm Control Unit) Components and components location

Specifications
Siren & ACU (Alarm control unit)
Item
Specification
Normal operating voltage
DC 12 V
Ope ...
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the left luggage side trim.
(Refer to Body - "Luggage S ...
Other information:
Component Location
1. Rear wiper arm & blade
2. Rear wiper arm nut
3. Rear wiper grommet
4. Rear wiper motor assembly
5. Rear wiper motor bolt
...
Components

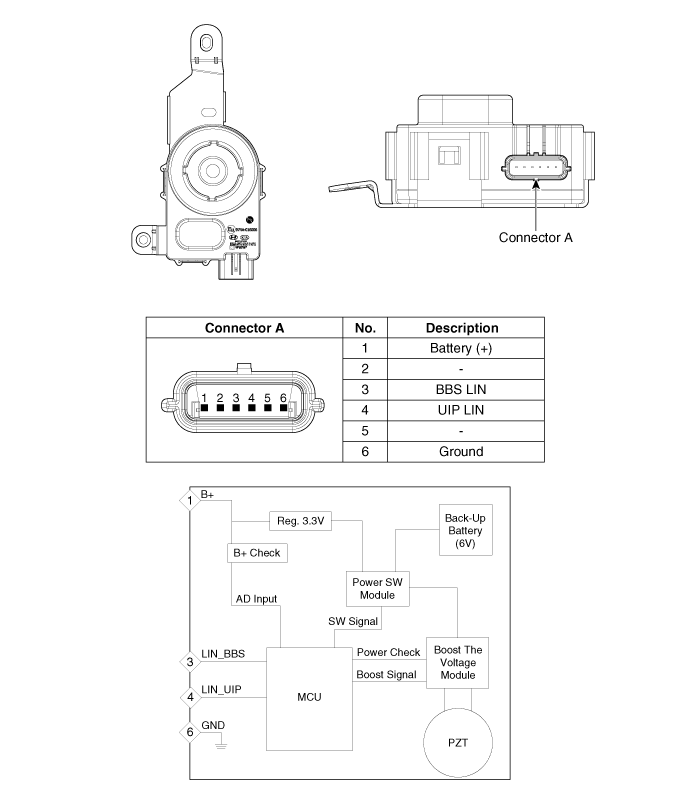

Connector Pin Information
No.
Connector A
Connector B
Connector C
1
Power supply
Cinching motor (+)
Spindle motor right_CCW (+)
2
Ta ...
