Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the left luggage side trim. (Refer to Body - "Luggage Side Trim")

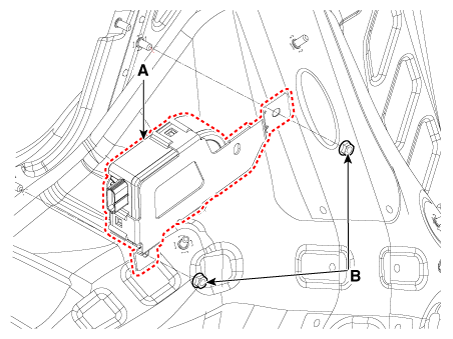

3.	Remove the burglar alarm siren (A) after disconnecting the connector and nuts (B).

Installation

1.	Install the burglar alarm siren.

2.	Connect the burglar alarm siren connector.

3.	Install the left luggage side trim.

Connect the negative (-) battery terminal.

Make sure the connector are connected in properly.
