Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the center fascia lower panel.
(Refer to Body - "Center Fascia Panel")
3.

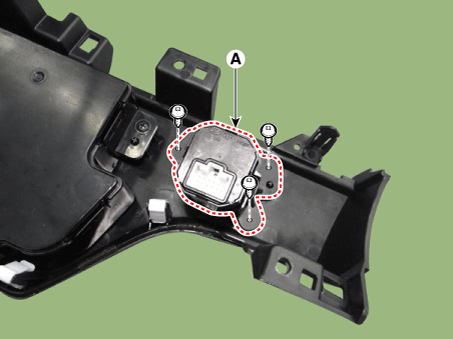

Remove the start/stop button (A) after loosening the screws.

Installation
1.
Install the start/stop button.
2.
Install the center fascia lower panel.
3.
Connect the negative (-) battry terminal.
